Wanli 2022 Hot Sell Ultrasonic Toast Biscuit Cutting Machine

high output high quality high speed from wanlisonic ultrasonic food cutting machine

Wanli 2022 Hot Sell Ultrasonic Toast Biscuit Cutting Machine

INTRODUCTION

high output high quality high speed from wanlisonic ultrasonic food cutting machine.

Our factory Wanli manufactures the automatic ultrasonic food cutting machine with high quality & very competitive price for 10 years in China.

We are in good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support.

Product detail

Application: INDUSTRIAL SLICERS FOR CAKE,CHOCOLATE,BUTTER,ETC

Original: Fujian, China

Material: Stainless Steel

Voltage: 220V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set

Standard Parameter

Model

Wanlisp4-300K1450L2000

Dimensions

L1500*W900*H1400mm

Weight

Net Wt. 210KGS, Gross Wt.310KGS

Voltage

220V

Rated power

4000W

Frequency

50Hz-60Hz

Cutting speed

30-120 cuts/minute( adjustable)

Number of blades

2 (optional)

Blade materials

Titanium Alloy

Blade size

300mm(optional)

Cut type

slices

Maximum cutting size

Width 600mm, food cutting height up to 80mm, blade up height:100mm

Material of machine frame

Stainless Steel

Automatic belt convey

Yes

Convey speed

0-3000mm

Safety protection system

Security door, frequency ultrasonic scan and fault indicator lamp

Control System

Four-axis Control System

Cutting knife control system

Servo motor



Advantages

Customized--We are the manufacturer! sample &OEM&ODM are available!

Safety--We have own test chart, all of our products have been rigorously tested in the factory.

Certification--We have CE and quality management system certification.

High Quality --Our company uses the most advanced equipment to make the best quality products.

Quality control

1. Checking raw material before producing.

2. Checking one by one before the assebling.

3. Checking one by one during the production.

Technical Features

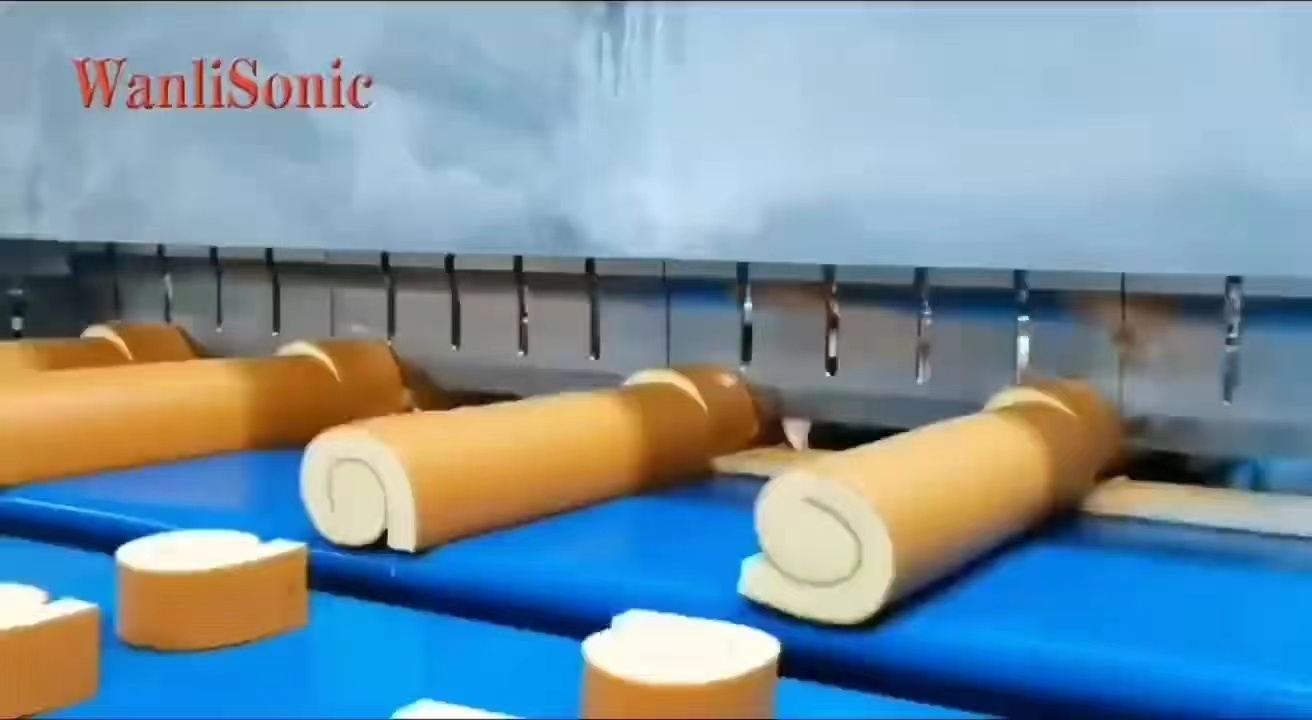

A. It consists of cutting machine, conveyor belt, and ultrasonic generator, the knife be controlled by the ultrasonic sound, so cutting be quick and cutting surface be tidy, better shape for final goods.

B. Stainless steel structure, easy to clean, serve motor, fast and stable. For automatically cutting cake, bread, nougat,frozen cake, Halva Bar etc.

C. It is the fastest and most convenient type, the cutting cross section will be very tidy and uniform.

D. Cutting Speed: 45 times/minute(Right and Left);1000mm/minute(front, rear, right and left); Cutting Error:±1mm

E. Machine could be customized according to the customers’ requirement.

F. With automatic front baffle

G. Control system: independent development of multiaxis control system

H. Multiaxis displacement driving device: Servo motor-precise positioning

I. Automatic up and down drive:Servo motor-multi-stage variable speed, adjustable cutting speed

J. Safety protection Grating: open to stop, proximity switch sensing device

K. Intelligent Touch Screen Panel: Friendly interpersonal interface, automatic mode, jog mode optional, all kinds of cutting options, the system comes with password system protection

L.Ultrasonic Generator: Automatic tracking, real-time tracking the frequency of ultrasonic cutting blade.
