Ultrasonic Sandwich slicing equipment

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.

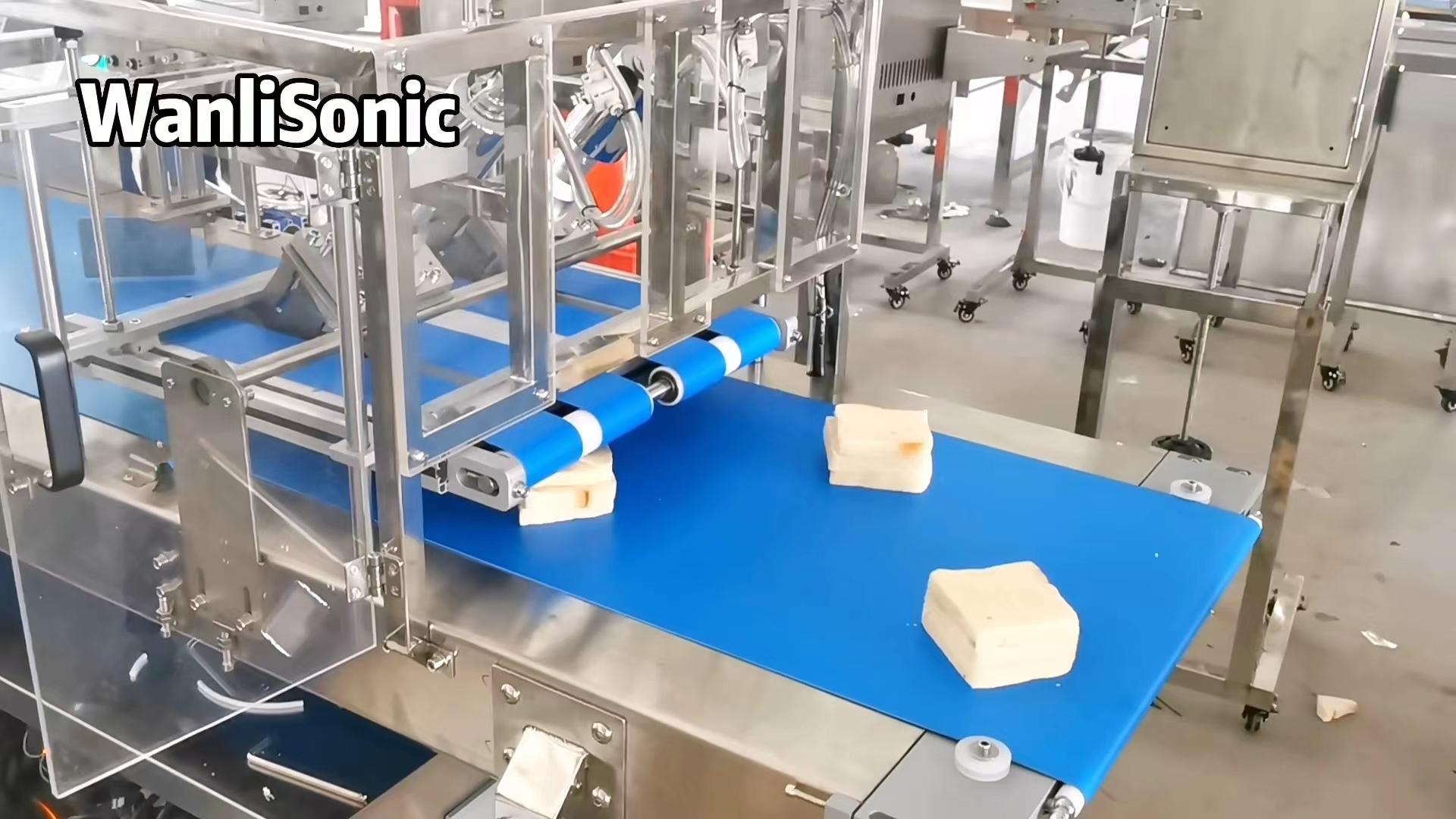

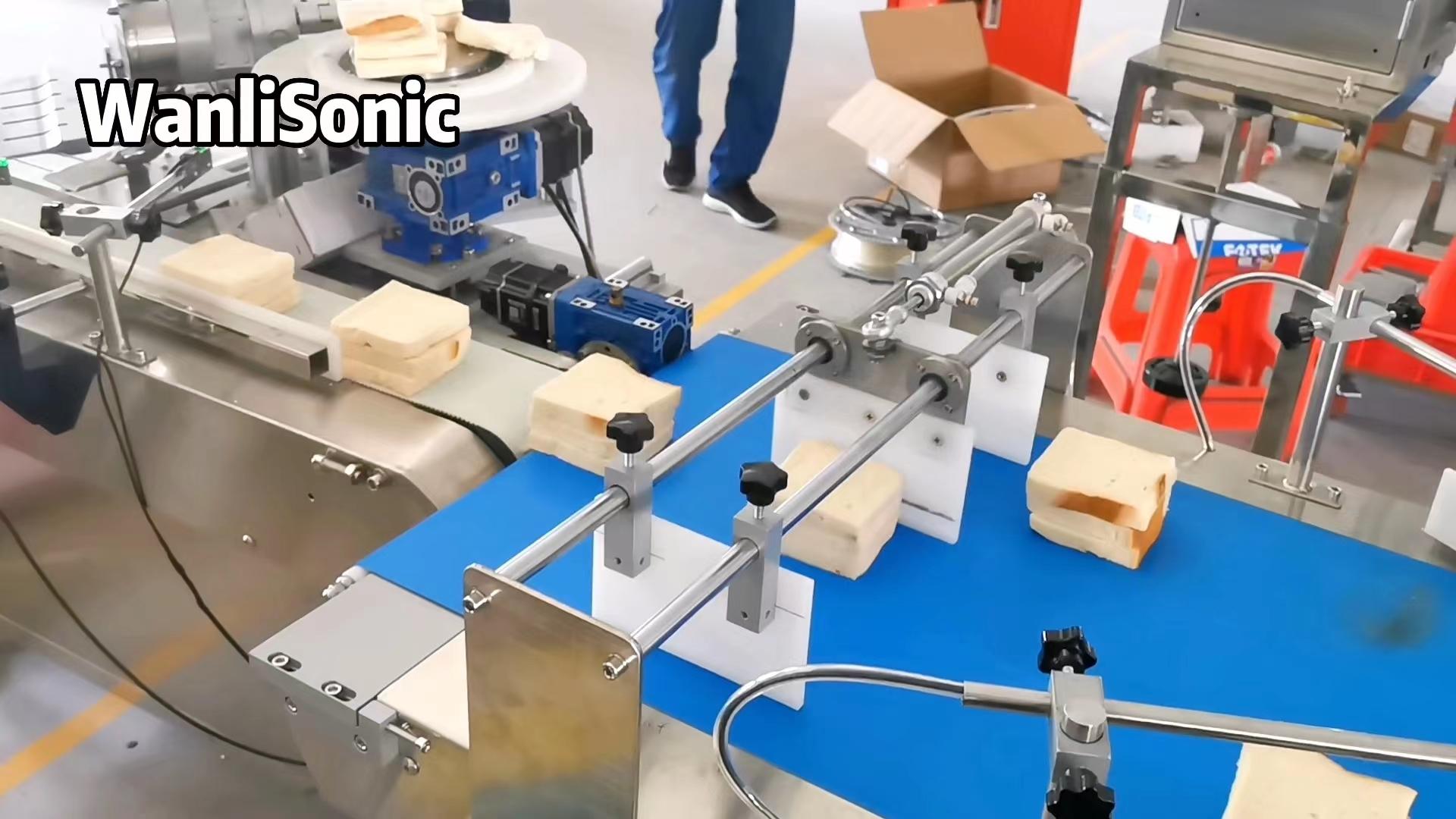

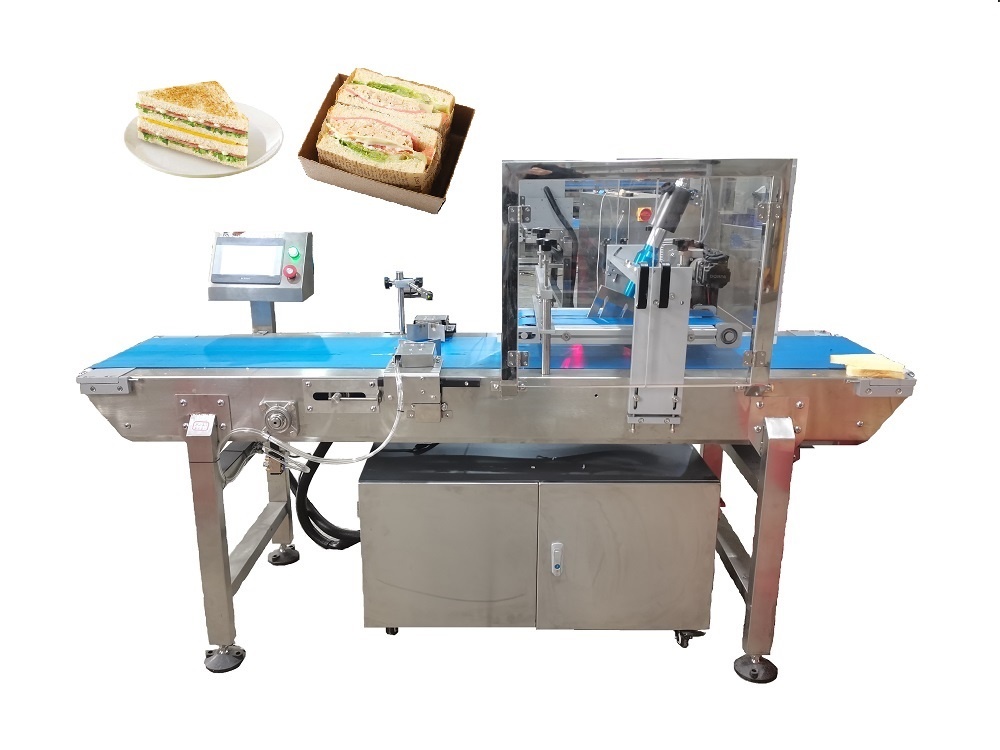

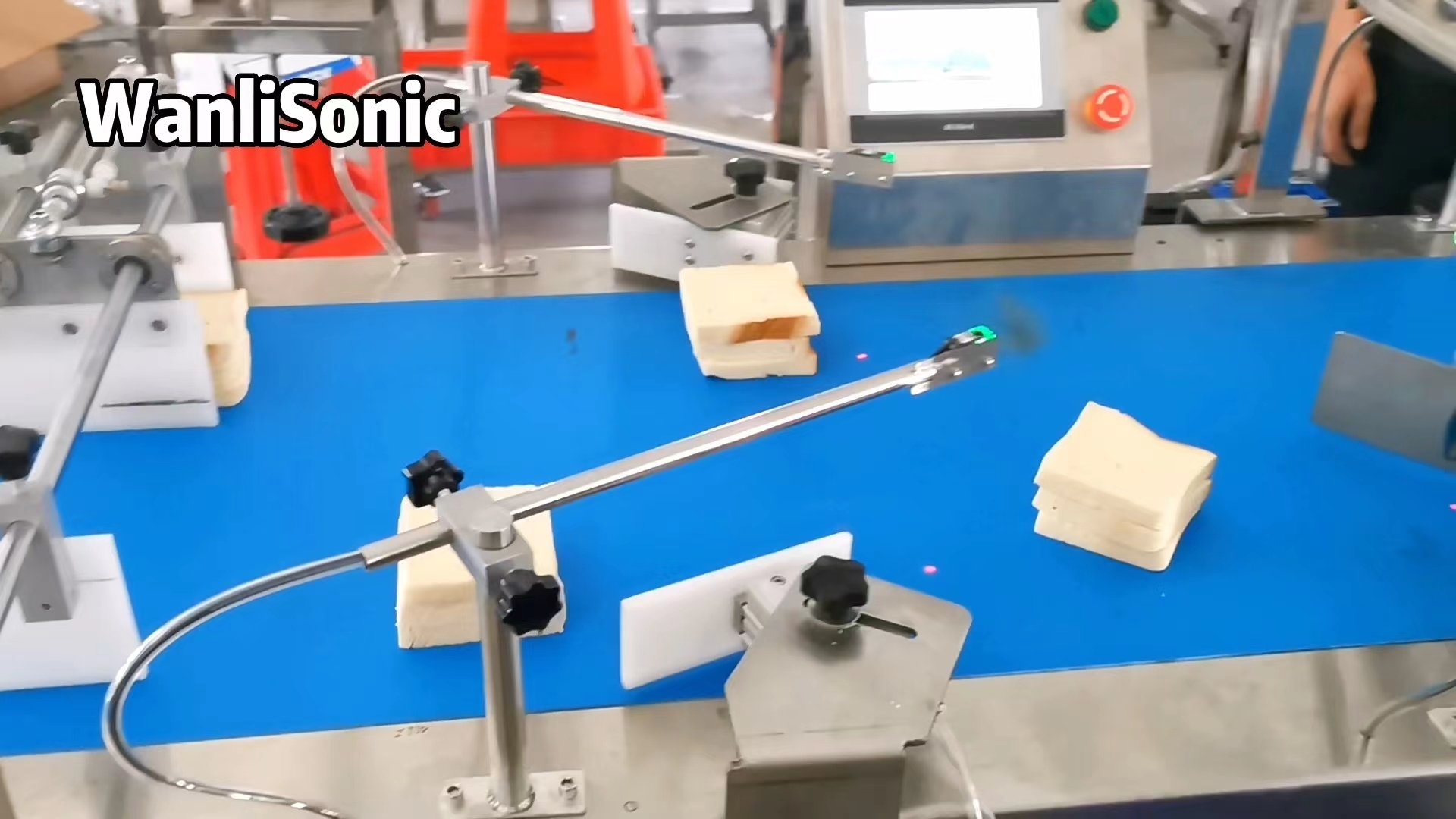

Ultrasonic Sandwich Cake Cutting Machine

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.



Product Specifications
Model Wanlisonic 160K
Dimensions L1700*W300*H1400mm
Weight Net Wt. 200KGS, Gross Wt.330KGS
Voltage 220V
Rated power 3000W
Frequency 50Hz-60Hz
Cutting speed 80 cuts/minute
Number of blades 1
Blade materials Titanium Alloy
Blade size

150-305mm(optional)

Cut type sandwiches cutting
Maximum cutting size 12cm*12cm, height below 10cm
Material of machine frame Stainless Steel
Automatic belt convey Yes
Convey speed 0-3000mm
Safety protection system Security door, frequency ultrasonic scan and fault indicator lamp
Control System Five-axis Control System
Cutting knife control system Servo motor
Certification CE
FEATURES AT A GLANCE

· HIGH SPEED CUTTING

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· BELT UNDERCARRIAGE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.
2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

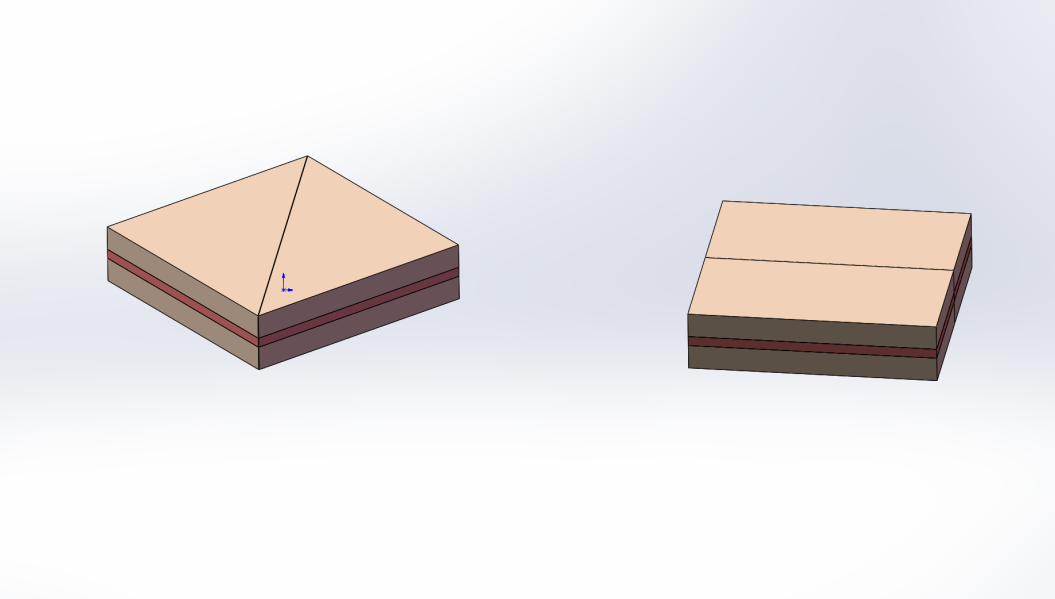

Cutting Schematic Model

Food slice mode

Applied to variety of food:Toast/BreadCheese/ButterCandy/NougatCookies etc.

Product Overview

The device with sandwiches slice mode.

Working speed and angle parameters are adjustable.

Applications

1. Bread slice
2. Sandwiches cut
3. Cheese triangle slice
4. Dough cut
5. Cake slice
6.Other foods
Other products feel free to contact us>>

PRODUCT CONFIGURATION

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.

CERTIFICATIONS

COOPERATION BRAND:

Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should I do before ordering?

A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?

A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.

Q: What’s the warranty of your products?

A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?

A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?

A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.

More details feel free to contact us!

Email:sales2@wanlisonic.com

Tel/WhatsApp/WeChat: 0086-1575-9600-601
