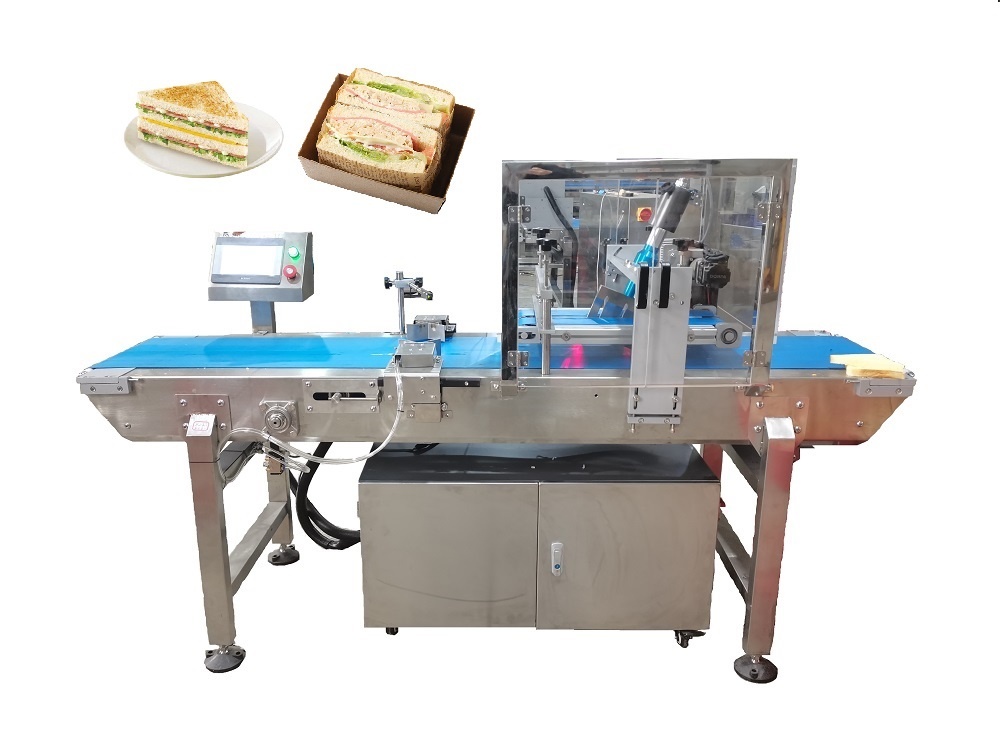

Ultrasonic Sandwich Cake Cutting Machine

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.



Ultrasonic Sandwich Cake Cutting Machine

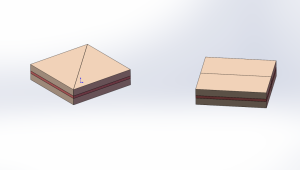

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.





PRODUCT SPECIFICATIONS
Model Wanlisonic-160K

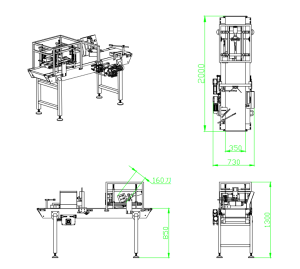

Dimensions L1700*W300*H1400mm
Weight Net Wt. 200KGS, Gross Wt.330KGS
Voltage 220V
Rated power 3000W
Frequency 50Hz-60Hz
Cutting speed 30-120 cuts/minute( adjustable)
Number of blades 1
Blade materials Titanium Alloy
Blade size 250mm(optional)
Cut type slices
Maximum cutting size Sandwich size 12*12cm, height below 10cm
Material of machine frame Stainless Steel
Automatic belt convey Yes
Convey speed 0-3000mm
Safety protection system Security door, frequency ultrasonic scan and fault indicator lamp
Control System Four-axis Control System
Cutting knife control system Servo motor

Application Process

We are a highly professional and experienced manufacturer of ultrasonic machine equipment in China. We manufacture and supply a wide range ultrasonic equipment to customers across the world. We develop a full line of cutting system components, kits and cutting horns, offering superior performance in terms of speed, safety, sanitation, reliability, and cost-effectiveness. When used for guillotine cutting or continuous slitting, our high frequency vibrating horns cut faster and cleaner than conventional motionless cutters.

Features of Ultrasonic Sandwich Cutting Machine

Offering a nice cut surface of sandwich
Enhancing product’s value
Improving productivity by minimizing the friction between sandwich and knife by using a 20,000 times per second of ultrasonic vibration
Automatic cleaning function of knife by ultrasonic vibration
The cleaning down time is reduced by 70% to 90% as compared to conventional cutting system.



Advantage:
Conveyor belt speed adjustable ( Max Productivity : 20-30 pcs / min )
Automatic Arrangement of Sandwich before Cutting
Knife Position adjustable depending on Height of Sandwich
Enhance product’s value due to offering a nice cut surface of Sandwich by cutting using knife which vibrates at 20,000 times per second.
Protect Cover is installed for safety and cleanliness

Product Configuration


             Brand Ultrasonic Transducer                  Brand Ultrasonic Generator                  Titanium Alloy Blade

Compare to conventional cutters
1. More sanitary
2. Less down time
3. Better cost-effectiveness
4. More consistency at cutting surface
5. Blades stay sharp longer

Ultrasonic Components

1.Stackable, ultrasonic power supplies and panel mount generator kits

2.Rigid mount ultrasonic boosters for improved stack stability

3.Wash-down duty, air-cooled converters (stainless steel body also available)

4.Food industry approved titanium blade,slitting and knife horns
