Automatic 2 Rows Sandwiches Ultrasonic Cutting Machine

Product Details:
Wanlisonic 160K(with 2 baldes) is an intelligent in-line slicer with ultrasonic cutting technology, designed for sandwich and wrap portioning. Used in conjunction with a jig to hold sandwiches, it provides a more precise cut. It also results in a clean, quality cutting surface for every slice. The ultrasonic slicer can process 1800-2200 sandwiches per hour.
  • Average speed: about 1800-2200 pieces per hour
  • Colorfultouch screen with User friendly interface
  • Reliable and durable ultrasonic machine
  • Increased quality and labor saving enhance capacity ​
  • Improved portion quality and consistency

Ultrasonic Sandwich Cake Cutting Machine

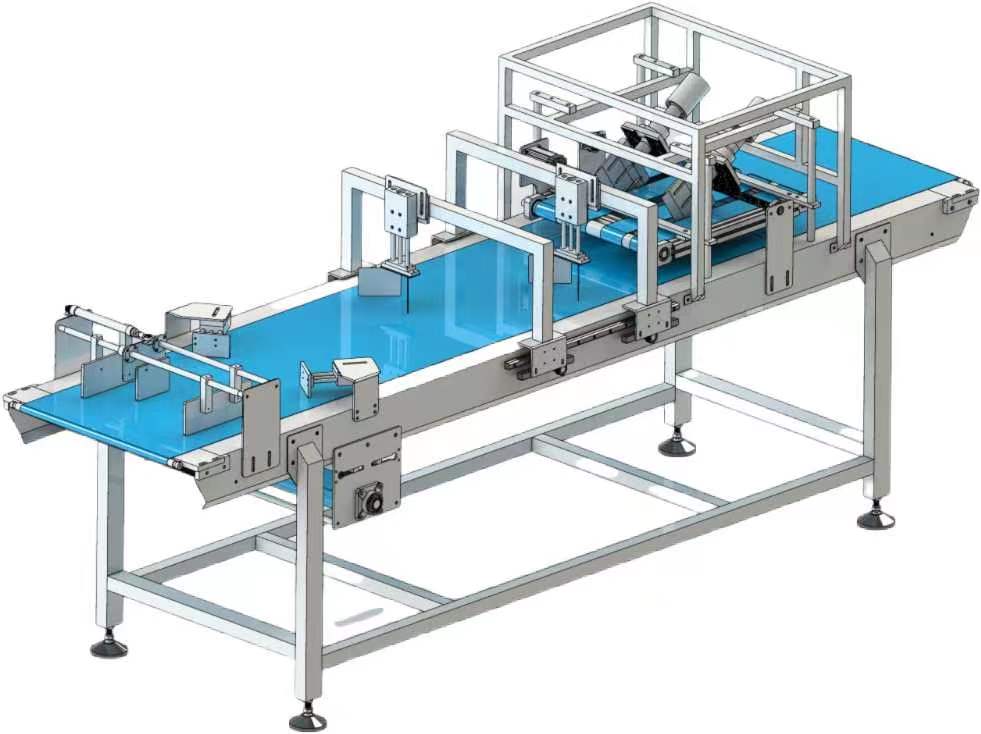

20230831102949

Ultrasonic sandwich cake cutting machine is a specialized device designed to precisely and efficiently cut sandwiches and cakes using ultrasonic technology. Ultrasonic cutting involves the use of high-frequency vibrations generated by ultrasonic transducers. These vibrations create a rapid and controlled slicing motion, making it ideal for delicate and soft food products like sandwiches and cakes. Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.

Understanding the Technology Behind Ultrasonic Cutting

Ultrasonic cutting utilizes high-frequency vibrations to effortlessly slice through various materials, including delicate cakes and sandwiches. Unlike traditional methods, this technology ensures precision without compromising the integrity of the layers, resulting in impeccably cut portions.

Cutting Mode

Cutting Mode

Applicable Industries
  • Sandwich
Cutting Example

3 1 4 1 5 1

Machine Dimensions(L*W*H)

6 1

WANLI
Machinery

At WANLI, we are proud to radiate our influence to every dessert industry.
Use WANLI. No worries!

Let's stay in touch

Add Your Heading Text Here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Send Your Inquiry

Features and Parameters

Main Features

  • Fully Stainless steel construction & food grade plastics
  • Conveyor belt speed could be adjustable
  • A wide range of blade types for various applications
  • Pre-programmed to cut half, quarters
  • A function of sterilization with UV light
  • Remote access capability with Ethernet
  • Safety protective door
  • Servor Motor driven ultrasonic blade
  • Easy-to-use editing programs
  • 3 user login levels-operator, supervisor and technician

Basic Parameters

  • Model:Wanlisonic 160K(with 2 baldes)
  • Dimensions:L1700*W600*H1400mm
  • Weight:Net Wt. 200KGS, Gross Wt.330KGS
  • Voltage:220V
  • Rated power:4000W
  • Frequency:50Hz-60Hz
  • Cutting speed:30-80 cuts/minute
  • Number of blades:2pcs
  • Blade materials:Titanium Alloy
  • Blade size:100-305mm(optional)
  • Cut type:sandwiches cutting
  • Maximum cutting size:12cm*12cm, height below 10cm(according to customers’ need)
  • Material of machine frame:Stainless Steel
  • Automatic belt convey:Yes
  • Convey speed:0-3000mm
  • Safety protection system:Security door, frequency ultrasonic scan and fault indicator lamp
  • Certification:CE, FDA
