Peanut Nougat Candy Ultrasonic Cutter

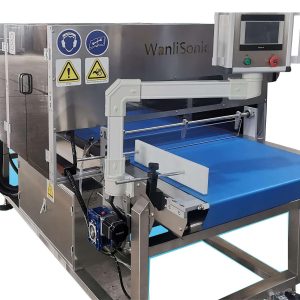

It is compact slicer machine with conveyor belt, it can meet the requirements of factory and baking home for high speed continuous cutting machine, its cut speed can up to 180 cuts/minute,can cut kinds of products such as cake, bread, cookies, nought, candy, cheese, protein bar and so on.

Ultrasonic Automatic Cutting Machine for Peanut Nougat Candy Food

Ultrasonic candy slicer, The best result for a wide range of products such as cheese, dough, bread rolls, cakes, chocolate bars and frozen food.The ultrasonic candy slicer equipment uses high frequency wave vibration to quickly handle candy, eliminates the downtime caused by traditional cutting blades for cleaning. Ultrasonic knife up and down 20000 vibrations per second, the high frequency vibration in the ultrasonic blades and candy build a little friction between surfaces, so don’t stick a knife and extrusion deformation problems.



Intorduction for Ultrasonic Candy Cutting Machine:

·Ultrasonic candy food cutting machine is specially designed for cutting different kinds food.
·It adopts the principle of ultrasonic cutting, and can be cut directly without freezing.
·With the advantage of no deformation after cutting, no slag inclusions on the blade, fine and smooth cutting surface, and high-grade products.
·The cutting speed can reach up to 180 knives per minute, the cutting accuracy can reach 0.1mm and the cutting size can be adjusted through touch screen.
·Safe and hygienic,easy to operate.

PRODUCT SPECIFICATIONS
Model Wanlisp1-250K300L1200 (High speed)
Dimensions L1200*W300*H1400mm
Weight Net Wt. 170KGS, Gross Wt.300KGS
Voltage 220V
Rated power 3000W
Frequency 50Hz-60Hz

Ultrasonic Frequency

20000Hz

Cutting speed 60 cuts/minute( adjustable)
Number of blades 1 (optional)
Blade materials Titanium Alloy
Blade size 300mm/pc (optional)
Cut type slices
Maximum cutting size Width 300mm, food cutting height up to 80mm, blade up height:100mm

if food height is more than80mm,need to customizeMaterial of machine frameStainless SteelAutomatic belt conveyYesConvey speed0-3000mm ( adjustable)Safety protection systemSecurity door, open safeguard, blade stop cutting.frequency ultrasonic scan and fault indicator lampCutting knife control systemServo motor

Cutting Schematic Model:







The confirgurations of ultrasonic cutting machine :

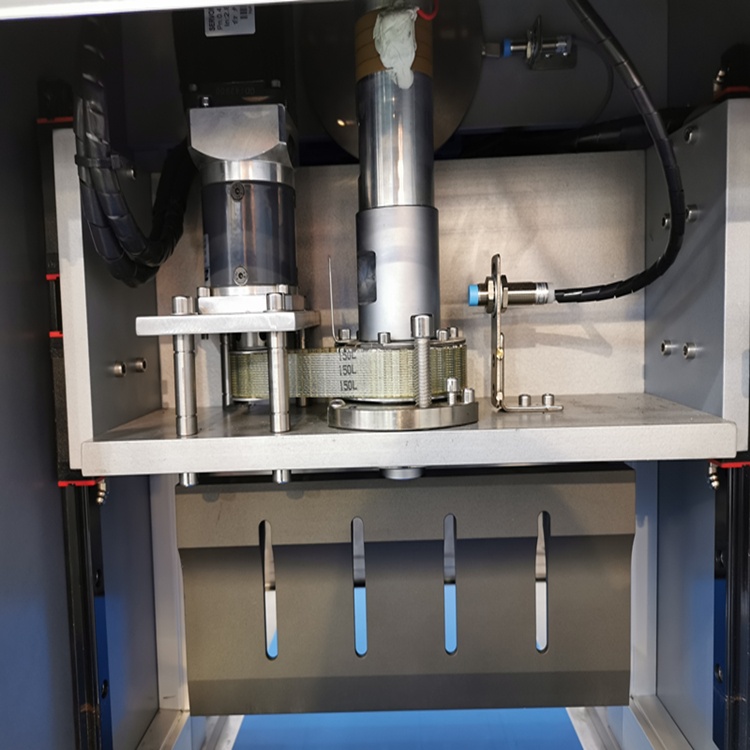

  • Ultrasonic Transducer, Booster, Cutting blade, Ultrasonic Generator.
  • Intuitive control panel with touch screen; various cutting formulas can be memorized.
  • Angle cut for round products, rectangle cut and slice cut for square products are both capable.
  • Linear guides of Cleanroom class are adopted, meets hygienic standards.

Range of Application:

Ultrasonic candy cutter machine is suitable for rubber, plastic and food products which include different hardness foods such as Cheese, Mousses Cake , Sponge Cake , Bread , Pizza , Candy , Nuts , Caramel Treats , Dried Fruits and Vegtables .
Also machine with special high amplitude vibration to cut all cheeses as blue cheeses or sticky ones like Bries,small budget high performance.
The machine can be used alone or connected to a production line.



Features for Ultrasonic Candy Food Cutting Machine:
1.Blade material: titanium alloy ultrasonic knife
2.Knife cleaning: reduce residue adhesion and avoid multiple knife washes
3.Cutting speed: adjustable cutting speed, high precision
4.Cutting effect: fine cut surface, no crumbs, no slag, no multi-layer color
5.Cutting mode: multi-purpose machine, can cut a variety of products
6.Scope of application: suitable for soft, elastic and frozen low-temperature materials and sandwich foods with different hardness
7.Environmental protection and safety: low noise, no smoke and odor
8.Work efficiency: stable performance, high continuous work efficiency
9.Machine energy consumption: low power consumption can be used with manipulator, automation equipment



Advantages of ultrasonic cutting machine are as below:
1. no need the sharp knife and large push, no damage of food.
2. small frictional resistance, no cutting material stick to the blade.
3. fast cutting speed, save labor cost.
4. safe operating, lower energy consumption, no noise.
5. manual operating, also used for automatic machinery operating.
6. easy operating ,easy installation.
7. high quality with best price, warranty is 1 year.
