Cookies Biscuits Ultrasonic Cutting Machine

This high-capacity ultrasonic cutter is designed for food slicing with a cutting speed of 110 knives per minute, accuracy of 1.5 mm.
The size of the cut product can be adjusted according to actual production conditions, and the cutting which can be entered into the computer system beforehand.

Cookies Biscuits Ultrasonic Cutting Machine

This high-capacity ultrasonic cutter is designed for food slicing with a cutting speed of 110 knives per minute, accuracy of 1.5 mm.
The size of the cut product can be adjusted according to actual production conditions, and the cutting which can be entered into the computer system beforehand. It also can be called through the touch screen control interface.

PRODUCT SPECIFICATIONS
Model Wanlisp2-250K800L3000
Dimensions L3000*W800*H1500mm
Weight Net Wt. 300KGS, Gross Wt.350KGS
Voltage 220V
Rated power 4000W
Frequency 50Hz-60Hz
Cutting speed 30-120 cuts/minute( adjustable)
Number of blades 2
Blade materials Titanium Alloy
Blade size 250mm
Cut type slices
Maximum cutting size Width 500mm, height up to 80mm
Material of machine frame Stainless Steel
Automatic belt convey Yes
Convey speed 0-3000mm
Safety protection system Security door, frequency ultrasonic scan and fault indicator lamp
Control System Four-axis Control System
Cutting knife control system Servo motor
Cutting thickness ≥1.5mm

Application Process

The ultrasonic slicer can beconnected to the single-row extruder before, and can cut the product continuously, and the cutting efficiency is high.
After that, it can be connected to the packaging machine, and the assembly line can be automated.
Feature:
1.Achieve less waste and large output
2.Hygienic, easy to clean
3.The cut surface is smooth and tidy, non-sticky, and the multi-layer products are not colored.
4.Intelligent system, simple and operation,easy switching of multiple products
5.After the setting is completed, one button starts, fully automatic cutting
6.The automatic frequency chasing ultrasonic driving power source tracks the ultrasonic cutting knife frequency in real time, and the ultrasonic cutting knife works in a stable state, which is suitable for continuous working for a long time.

PRODUCT CONFIGURATION

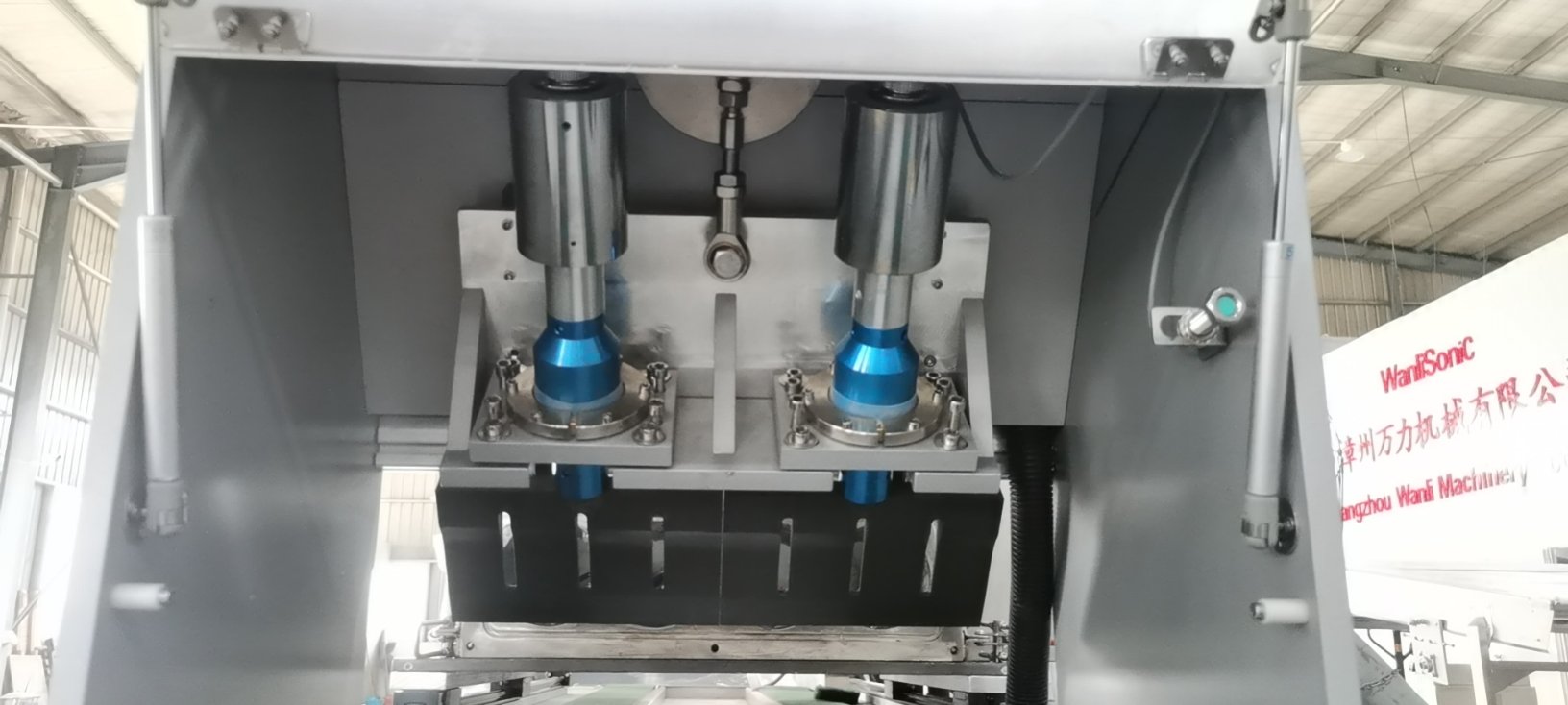

       Brand Ultrasonic Transducer         Brand Ultrasonic Generator        Titanium Alloy Blade



Introduction to Ultrasonic

1.Ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.).
2.Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting.
3.Ultrasonic food cutting machine also has a big bright spot. That is, during working, the knife surface is not easy to carry bacteria. And for easy moldy food, cutting section will not be infected with mold compared to other knives to be often disinfected and cleaned to facilitate health.



safety:If some trouble was happened at ultrasonic equipments, the ultrasonic generator output the error signal to customer's PLC. The system can detect the trouble and stop the system immediately.



FAQ

Q: Why I choose you?

A: We have been in this line for over 10 years,we can supply one-stop service ,with professional engineers team,exact layout proposal,and quality machinery.

Q: If we have problems when using this machine, what should we do?

A: If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.
