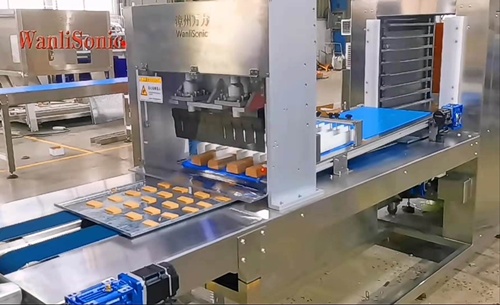

Automatic Ultrasonic Cookies Slicing Machine

This is compact slicer machine with conveyor belt, it can meet the requirements of factory and baking home for high-speed continuous cutting machine, its cut speed can up to 180 cuts/minute, can cut kinds of products such as cake, bread, cookies, nougat, candy, cheese, protein bar and so on.

Automatic Ultrasonic Cookies Slicing Machine

This is compact slicer machine with conveyor belt, it can meet the requirements of factory and baking home for high speed continuous cutting machine, its cut speed can up to 180 cuts/minute, can cut kinds of products such as cake, bread, cookies, nought, candy, cheese, protein bar and so on.

PRODUCT SPECIFICATIONS


Model

Wanlisp2-250K800L3000

Dimensions

L3000*W800*H1500mm

Weight

Net Wt. 300KGS, Gross Wt.400KGS

Voltage

220V

Rated power

6000W

Frequency

50Hz-60Hz

Cutting speed

10-80 cuts/minute( adjustable)

Number of blades

2 (optional)

Blade materials

Titanium Alloy

Blade size

100-305mm(optional)

Cut type

slices

Maximum cutting size

Width 500mm, height up to 75mm (optional)

Depositor

Optional (mold can be customized)

End baffle

Customized

Material of machine frame

Stainless Steel

Automatic belt convey

Yes

Convey speed

0-3000mm

Safety protection system

Security door, frequency ultrasonic scan and fault indicator lamp

Control System

Four-axis Control System

Cutting knife control system

Servo motor

Certification

CE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Cutting Schematic Model


Food slice modeApplied to variety of food:Toast/BreadCheese/ButterCandy/NougatCookies etc.

·

HIGH SPEED CUTTING




· STAINLESS STEEL FRAME               · TITANIUM ALLOY ULTRASONIC KNIFE               · SECURITY DOOR

· VERSATILITY ON FOOD                  · ONLINE MAINTENANCE SUPPORT                  · BELT UNDERCARRIAGE



Product Overview


The device with slice mode. Working speed and angle parameters are adjustable.



Applications1. Bread slice
2. Sponge cake cut
3. Cheese slice
4. Dough cut
5. Cookie slice
6. Gummy nougat cutting
7. Butter cut

PRODUCT CONFIGURATION




            Brand Ultrasonic Transducer                               Brand Ultrasonic Generator                             Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.

Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should I do before ordering?

A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?

A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.

Q: What’s the warranty of your products?

A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?

A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?

A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
