For ultrasonic food cutting applications embedded into automated production lines, we provide vibrating groups with different frequencies ranging from 20 to 60 kHz according to the end user’s requirements, keeping work safety and lack of noise during the manufacturing stage.

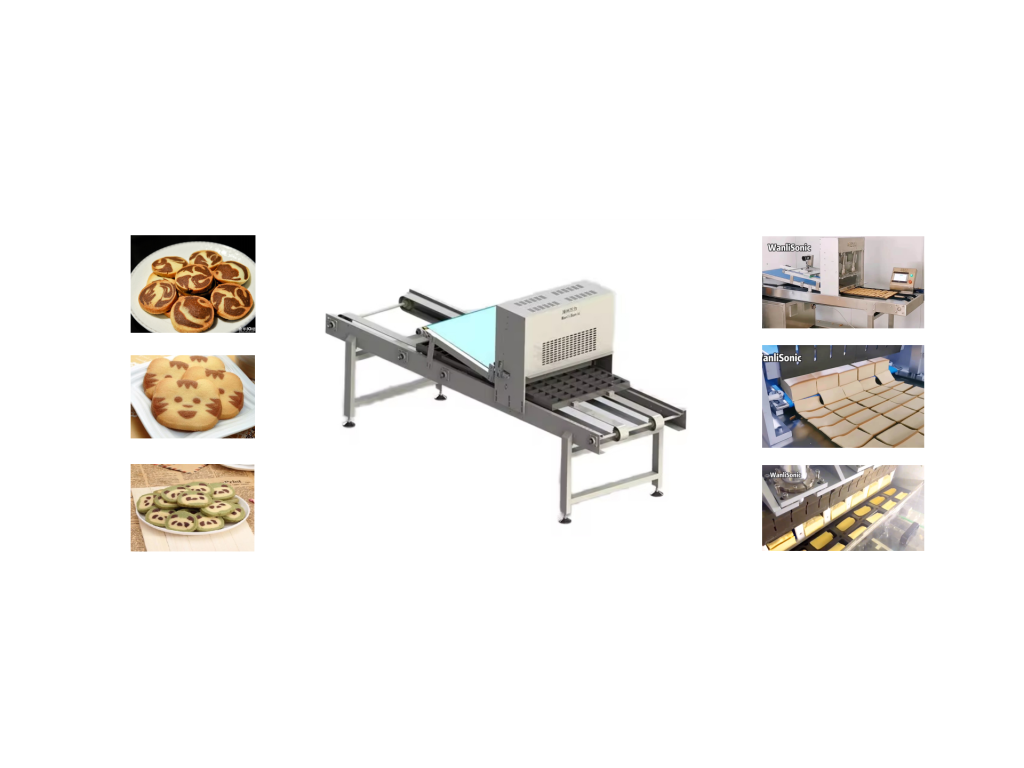

This is compact slicer machine with conveyor belt, it can meet the requirements of factory and baking home for high speed continuous cutting machine, its cut speed can up to 180 cuts/minute, can cut kinds of products such as cake, bread, cookies, nought, candy, cheese, protein bar and so on.
1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
1. Commercial bakeries
2. Food processing plants
3. Cookie industry
4. Frozen processed food industry
5. Gluten-free and specialty dietary bakeries
6. Small and artisan cookie bakeries
Ultrasonic transducer: Converts electrical energy into mechanical energy to vibrate.
Cutting blade: vibrates at ultrasonic frequencies to cut dough and cookies.
Control System: Controls and regulates the cutting process to ensure accuracy and efficiency.
Automatic tray arrangement: Automatically place the cut cookies on the baking tray without manual arrangement, simplifying the production process.
Model：Wanlisp2-250K800L3500
Dimensions：L3680*1135*1640mm
Weight：Net Wt. 300KGS, Gross Wt.350KGS
Voltage：220V
Rated power：50HZ-60HZ
Frequency：20000Hz
Cutting speed：60 cuts/minute( adjustable)
Number of blades：2(optional)
Blade materials：Titanium Alloy
Wanli Group offers innovative and customized bakery cutting solutions that will meet your needs. Discover how our expertise, combined to yours, can speed up your food production.
