Ultrasonic Automatic Square Sheet Cake Cutting Machine

Wanli's efficient ultrasonic cutting tools allow companies in the food industry to increase their performance and improve their slicing operations.
The principle is simple: the edge of the vibrating knife (sonotrode) is set at a defined amplitude (30 to 100 µ) and frequency (20 or 30 kHz) as needed. It creates an acceleration of more than 105 G, which, with the help of a press that moves up and down, cuts food into portions.
Benefits of ultrasonic cutter tool machine:
- clean cuts without mess or crushing,
- compatible with soft, sticky and crumbly foods,
- self-cleaning blade,
- food does not adhere to the sides of the blade, thus preventing layers from smearing into each other,
- extremely thin, uniform layers possible with a level of tolerance that is yet unattainable with other methods,
- high throughput,
- zero crumbling and less product loss,
- much safer than all other conventional cutting methods,
- cuts through hard ingredients (walnuts, pistachios, olives, raisins, etc.) without moving them from place.

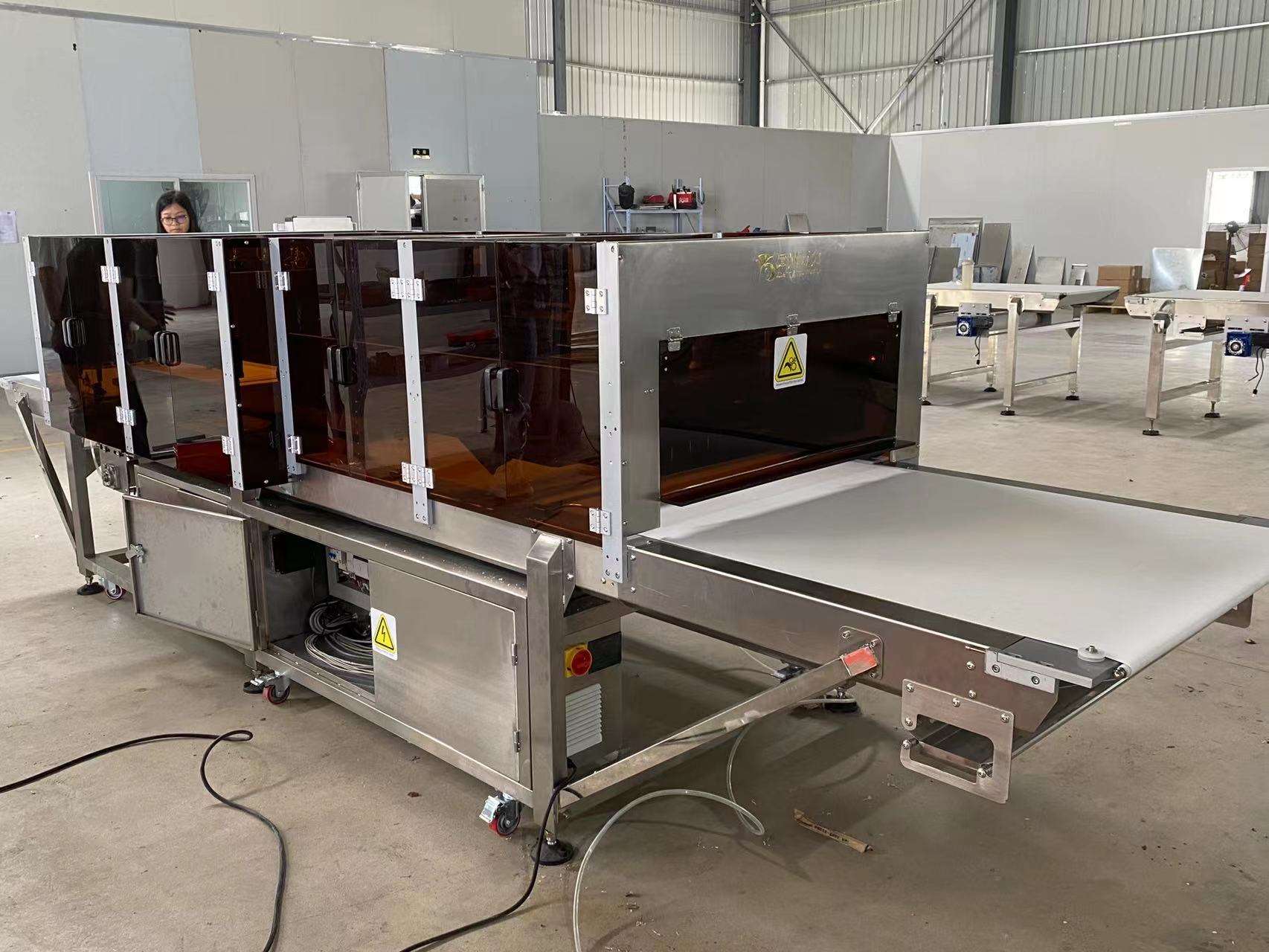

Ultrasonic Automatic Square Sheet Cake Cutting Machine

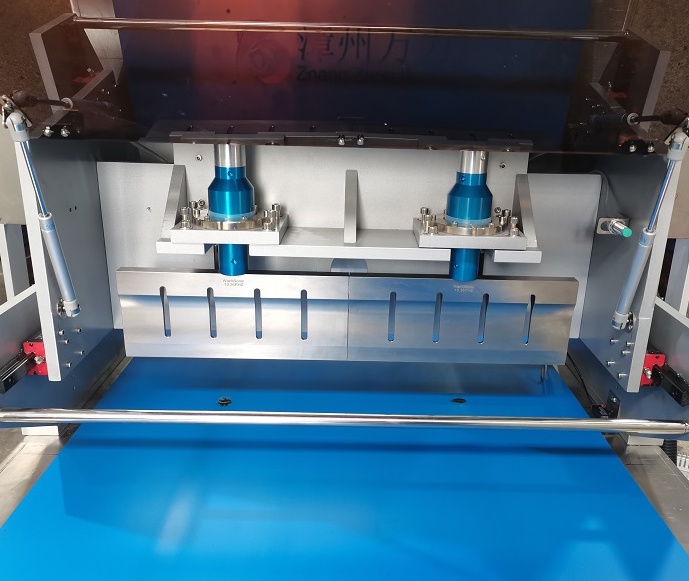

It uses 4 ultrasonic blades (2 for horizontal cut, 2 for vertical cut) to perfectly cut through any type of fresh or frozen cake, layered with cream or any filling. Once the machine finishes the longitudinal cut, the product advances to the horizontal cut and simultaneously loads the new product to recommence the process.

Technical features

The 20khz high frequency vibrating blades ensure that nothing sticks to the blade during cutting and guarantees a clean cut without damaging the cake structure or layering

All lateral off-cuts are automatically disposed of into the lateral collection shutes to permit the cut product to move forward without trimmings

The freely programable colour touch screen allows the operator to set any cut dimension and trim.

Model

Wanlisp4-300K900L3500

Dimention L3.5M x W0.9M (divided into 2 sections).
Cut size 600mm*600mm
Cutting speed 60 times/minute

Material

Titanium Alloy

Ratde Voltage

220V

Frequency

50HZ

Power

5000W

Can be controlled by touch screen

Yes

Condition

New



Automatic Sheet Cake Portioning Machine

Automatic Sheet Cake Portioning Machine
