Pocket pillow bread prodution making machine,First, the toast is long, cut into slices by the bread peeler, and then put into the machine (toast bread opening, filling, pocket bread forming), which can be equipped with a packaging machine for packaging, and then can be sold directly.
Send Your Inquiry Today
Product Preview:
This machine (pocket bread machine) adopts advanced concept, humanized operation and all-round stainless steel production, which has the advantages of easy operation, high production efficiency, good forming and low failure rate. The equipment consists of toast conveying, toast sandwiching, toast forming, residual material cross-recovery, and finished product conveying.
Mode Schemati

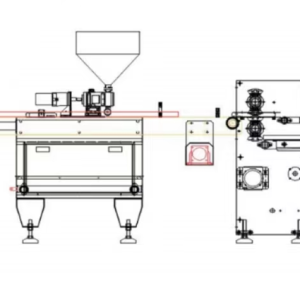

Mode Schematic:

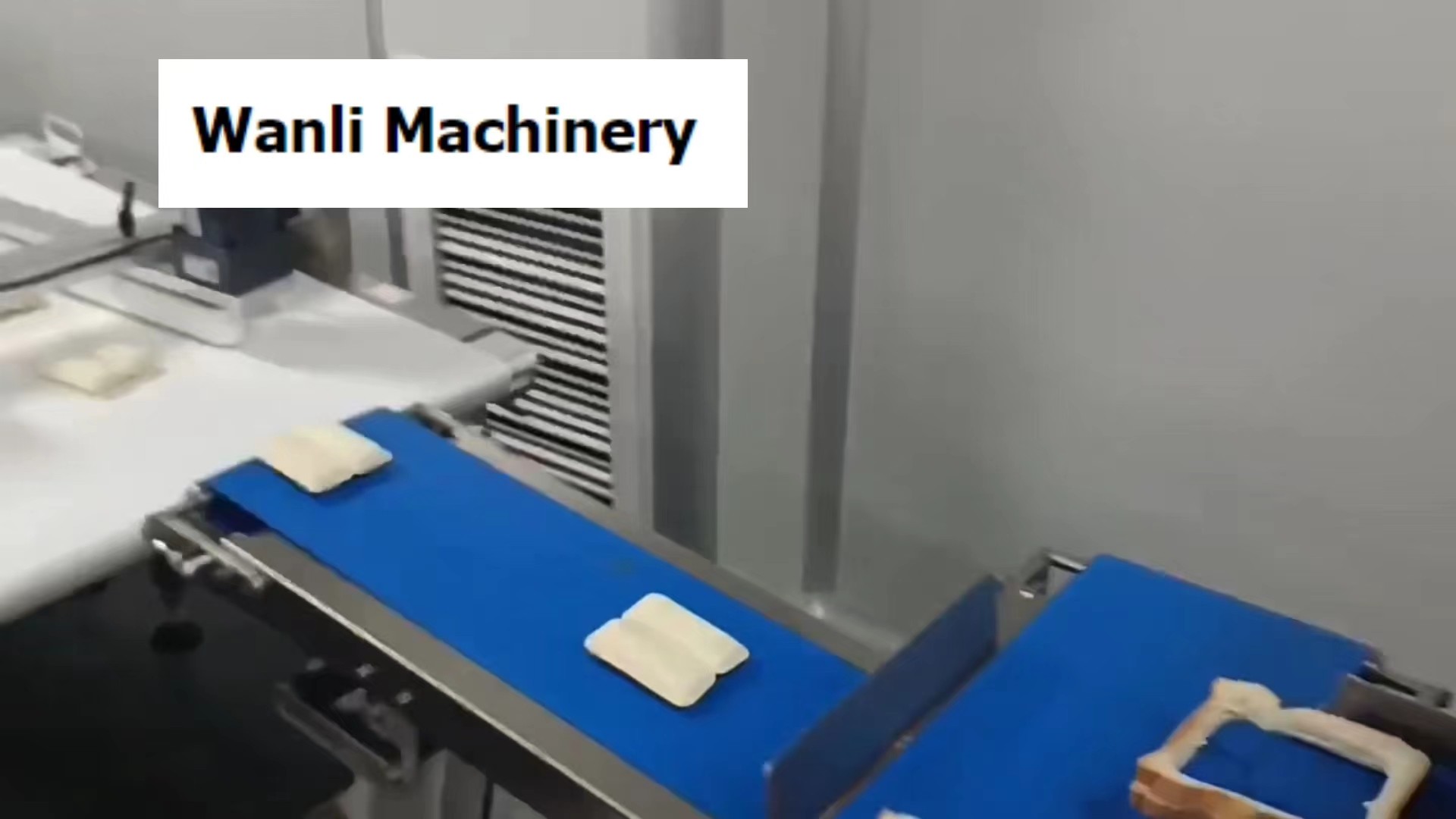

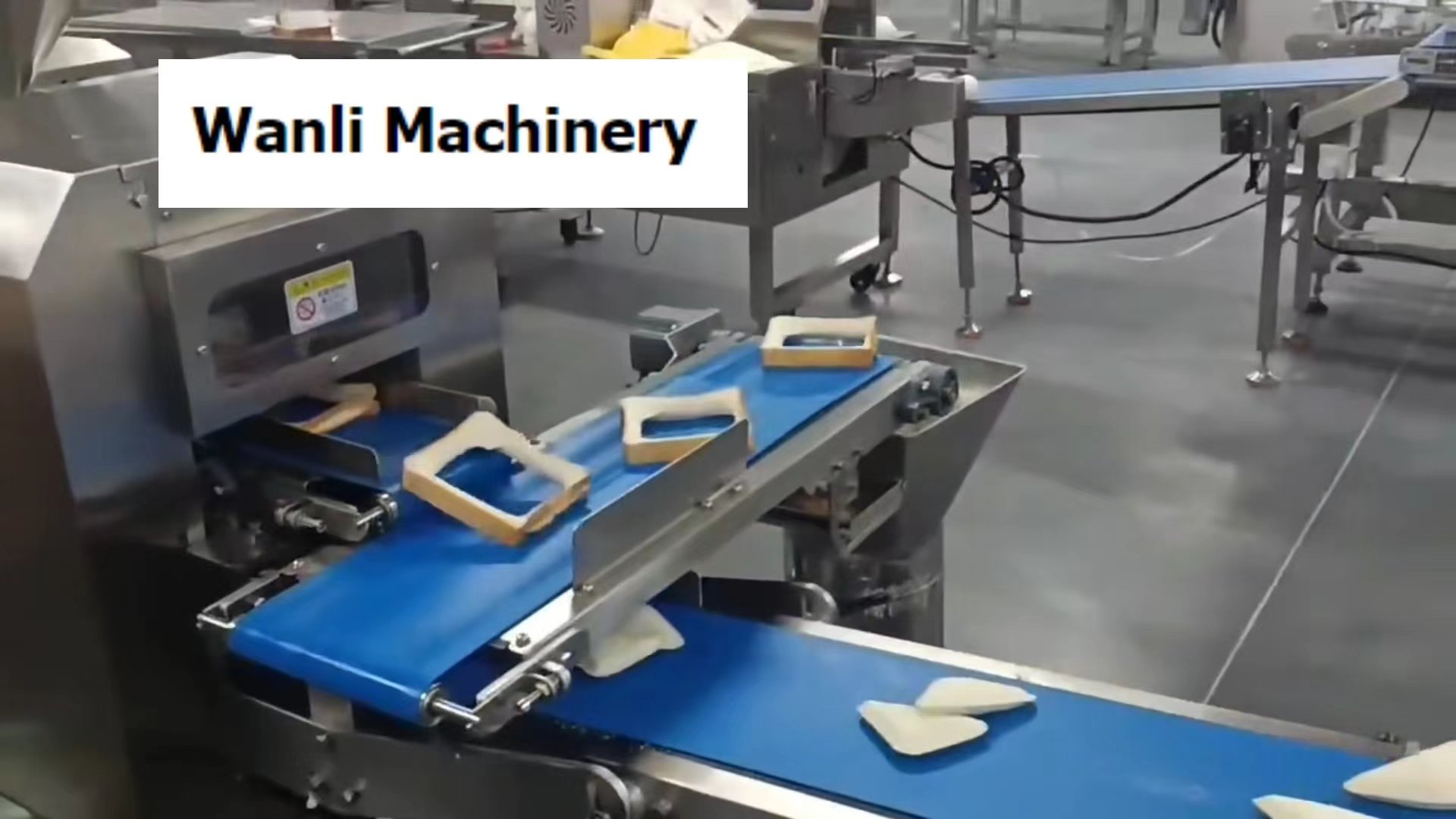

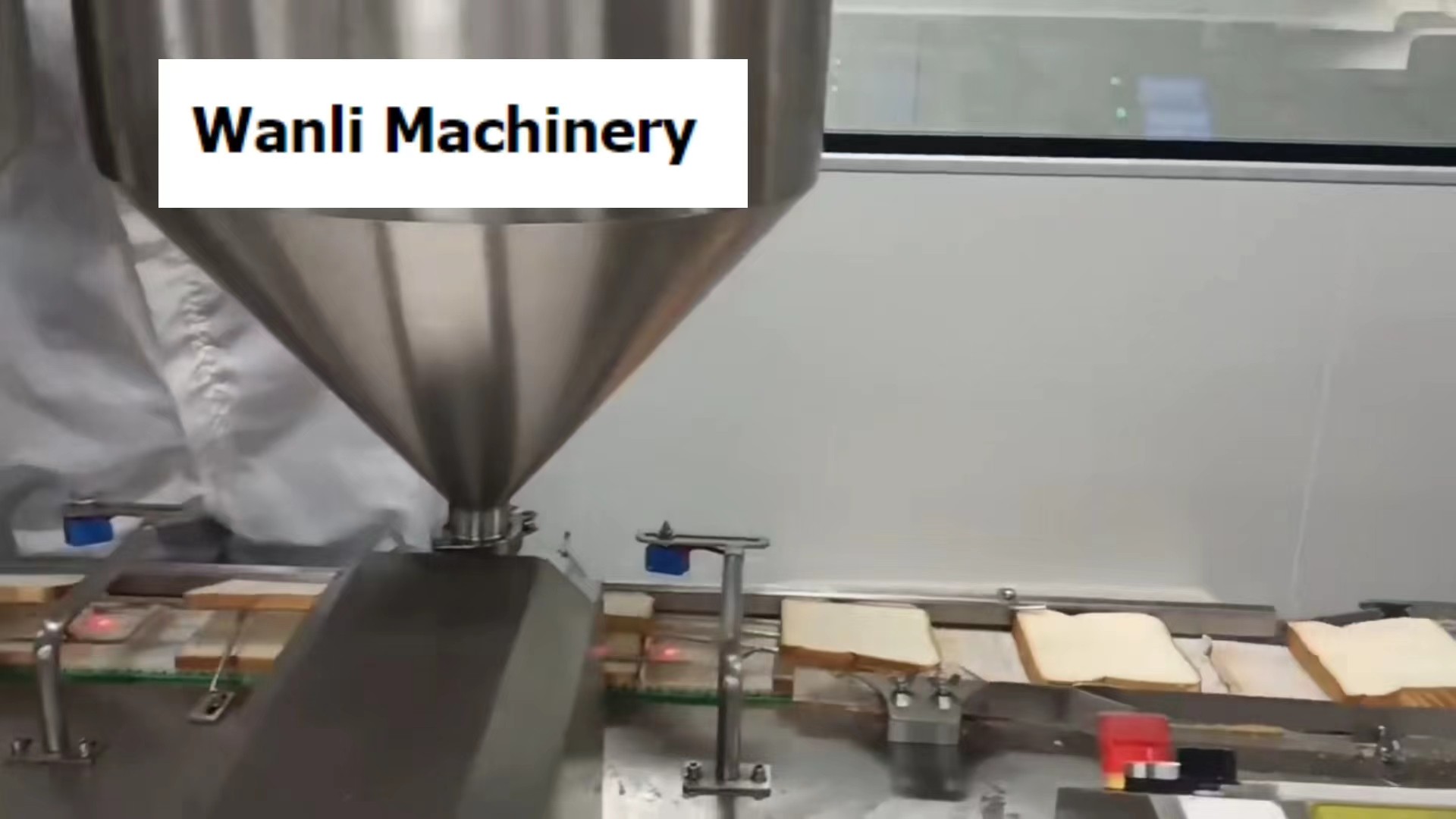

Woking Video:
Copy this address to open YouTube: https://youtube.com/shorts/c_kT38L30aU
Standard Parameter
Model |
WANLISONIC-LINE900K(one line) |
Dimensions |
(L)3600+800*(W)1200*(H)1450 mm |
Weight |
Net Wt. 600KGS, Gross Wt.650KGS |
Voltage |
220V |
Rated power |
38000W |
Frequency |
50Hz-60Hz |
Cut type |
Pocket bread making |
Material of machine frame |
Stainless Steel |
Automatic belt convey |
Yes |
Convey speed |
Adjustable |
Capacity |
80~120 pcs of toast per minute |
Cutting knife control system |
Servo motor |
Certification |
CE |
Features :
1、This production line is used in toast food factory, so that the product variety is richer and the taste is diverse;
2、After slicing the toast, this production line will put the toast into the next slicing machine and convey it to the sandwich machine.
The machine can sandwich cream, chocolate sauce, jam and other fillings, and after sandwiching the fillings, it can be pressed into the mouth with the molding machine.
Bag of bread, can produce 100-120 pieces per minute;
3、Double motors, frequency converter, servo and PLC control, material injection is ready to use, precise setting, easy operation.
easy to set and operate;
4、Human-machine interface, convenient and quick parameter setting;
5、Fault self-diagnosis function, fault display at a glance;
6, high-sensitivity photoelectric switch detection, no leakage detection, digital input injection material level, to give material
More accurate weight; machine function, there will be no leakage of filling products, no waste of filling;
3, simple transmission system, more reliable work, maintenance more convenient.
Components
No. |
Name of Component |
Brand |
Introduction |
1 |
Thicken and Bigger Machine Framework |
Wanlisonic |
Stainless steel, easy to clean, made with thicken china standard material, made by Anshan Iron and Steel Company |
2 |
Conveyor |
Wanlisonic |
Food grade-level conveyor belt |
3 |
Touch Screen |
Wecon |
Intelligence control, for the operation and monitor
|
4 |
PLC Control System |
Wecon |
Anti-error operation, safety testing, alarm indication |
5 |
Reley |
OMRON |
Touch switch |
6 |
Sensor |
Leuze |
For Testing whether have the products under the blade |
7 |
Frequency Inverter |
SANJING or Delta |
Driving the conveyor to work |
8 |
Servo Motor |
Dorna |
Driving the blade to work |
9 |
Stepmotor |
Dorna |
Driving the blade to work |
Wanli intelligent standard food cutting machine is a fully automatic high-performance food cutting machine with multiaxis standard control system. The actual food production can fix position and complete all operation automatically according to the need. In this way, it maximize the benefits with the most economical purchase.
