High Production Ultrasonic Cutter for Cake with Cream

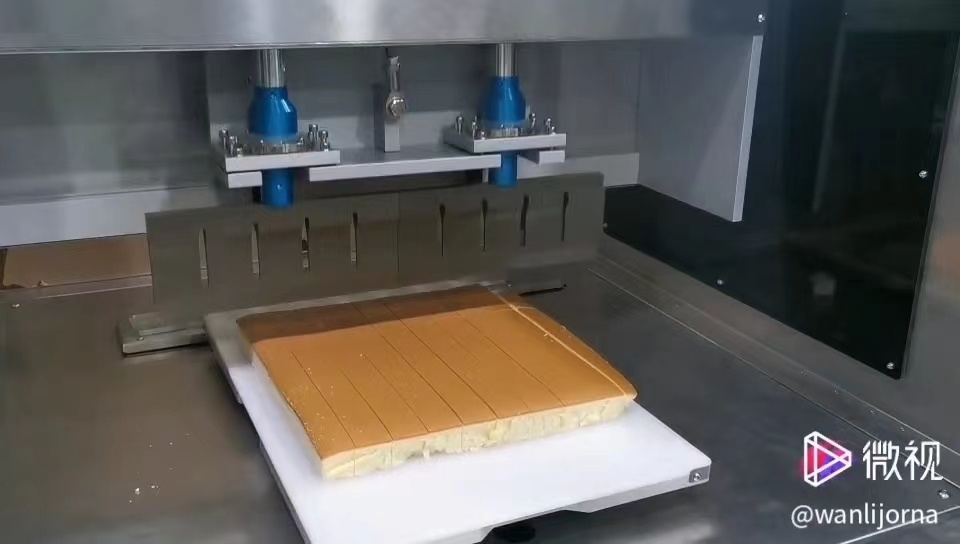

Ultrasonic cutter for cake with cream. When the cake has cream inside, the unique option is Ultrasonic cutter due to cream adhesion. When the normal blade goes into the cake, the cream sticks to the blade and after 100 pcs, the cream becomes hard on the blade. In the next cuttings, slices the outside is deformed. In order to prevent this sticky cream, Ultrasonic vibrations are used. Because Ultrasonic blade is vibrating while it is slicing so the cream cannot stick to the Ultrasonic vibrating blade. As the ultrasonic blade is made of titanium, it is also suitable for food industry.

High Production Ultrasonic Cutter for Cake with Cream

Ultrasonic cutter for cake with cream. When the cake has cream inside, the unique option is Ultrasonic cutter due to cream adhesion. When the normal blade goes into the cake, the cream sticks to the blade and after 100 pcs, the cream becomes hard on the blade. In the next cuttings, slices the outside is deformed. In order to prevent this sticky cream, Ultrasonic vibrations are used. Because Ultrasonic blade is vibrating while it is slicing so the cream can not stick to the Ultrasonic vibrating blade. As the ultrasonic blade is made of titanium, it is also suitable for food industry.



Technical Features:

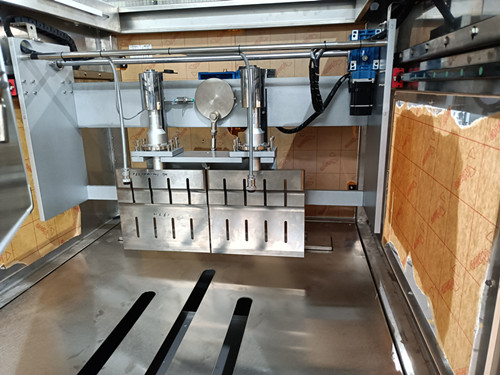

  1. It consists of cutting machine, conveyor belt, and ultrasonic generator, the knife be controlled by the ultrasonic sound, so cutting be quick and cutting surface be tidy, better shape for final goods.
  2. Stainless steel structure, easy to clean, serve motor, fast and stable. For automatically cutting cake, bread, nougat,frozen cake, Halva Bar etc.
  3. It is the fastest and most convenient type, the cutting cross section will be very tidy and uniform.
  4. Machine could be customized according to the customers' requirement.



PRODUCT SPECIFICATIONS
Standard Parameter

Model Wanlisp2-305K920L1700
Dimensions L1270*W9100*H1610mm
Weight Net Wt. 320KGS, Gross Wt.420KGS
Voltage 220V
Rated power 8000W
Frequency 50Hz-60Hz
Cutting speed 35-60cuts/minute
Number of blades 2 (optional)
Blade materials Titanium Alloy
Blade size 300mm/pc(optional)
Cut type Square, rectangular, triangle, slicer ,diamond
Maximum cutting size 600mmx400mm,food cutting height up to 80mm, blade up height:100mm.
Material of machine frame Stainless Steel
Self cleaning and safety Yes; safety system
Safety protection system Infrared inspection, frequency ultrasonic scan and fault indicator

lamp,secu

Control System Four-axis Control System
Cutting knife control system Servo motor
Machine mobility Casters

Cutting Schematic Model


Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine
Advantages
1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.
CERTIFICATIONBakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine
Our customers:
Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine
Our Company and Advertisements:Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine

ZHANGZHOU WANLI MACHINERY CO.,LTD.

Zhangzhou Wanli Machinery Co., Ltd., , located in Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province. Zhangzhou Wanli Machinery Trade Co., Ltd. is the Foreign Trade Department and wholly-owned subsidiary of our factory. And we are also a company of integrating R&D, production, sales, and service. We are specializing in the research and manufacturing of high-tech food machinery, which provide a new mode of production for food companies. For example, ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.). Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting. Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions. We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!

Production scene:

Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine
Package and Deliver:
Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine

Exhibition:Bakery Equipment Food Processing Machine High Capacity Ultrasonic Food Slicer Machine Continuous Round Cake Cutting Machine

FAQ
Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you choose. If your orders are urgent, we will make it faster as your need.

Q: What's the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.


Q: Do you have the installation service?
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
