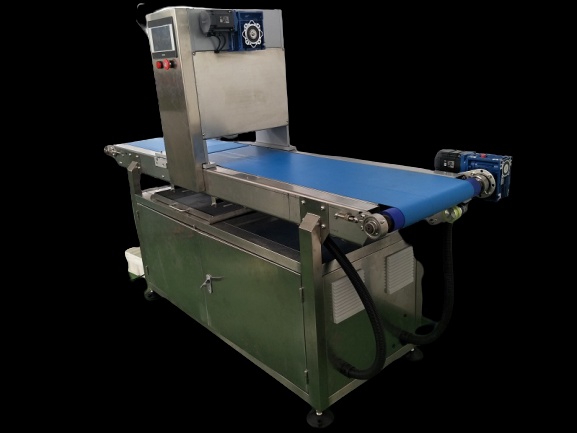

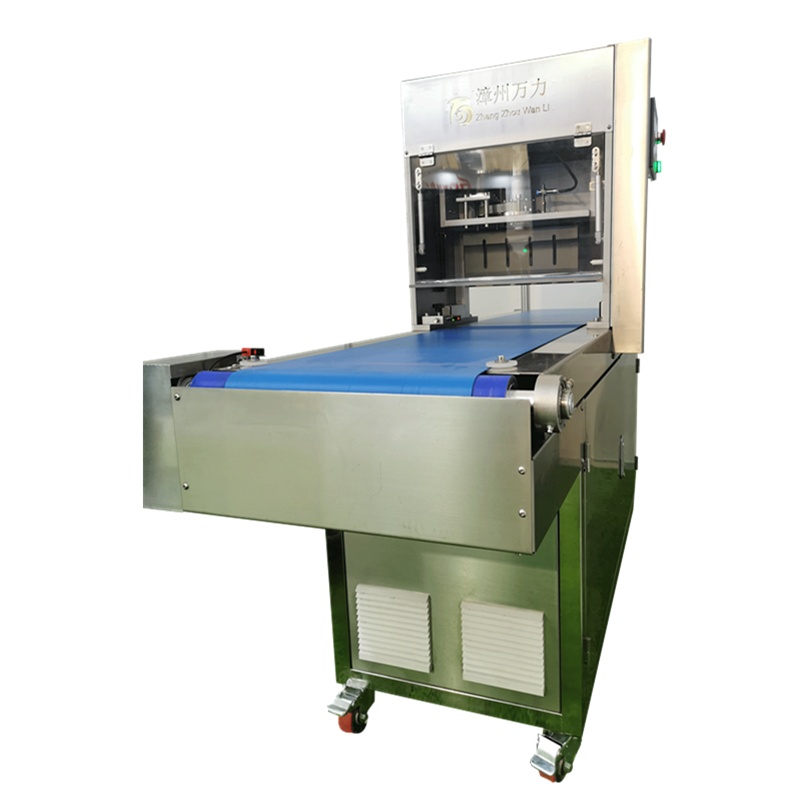

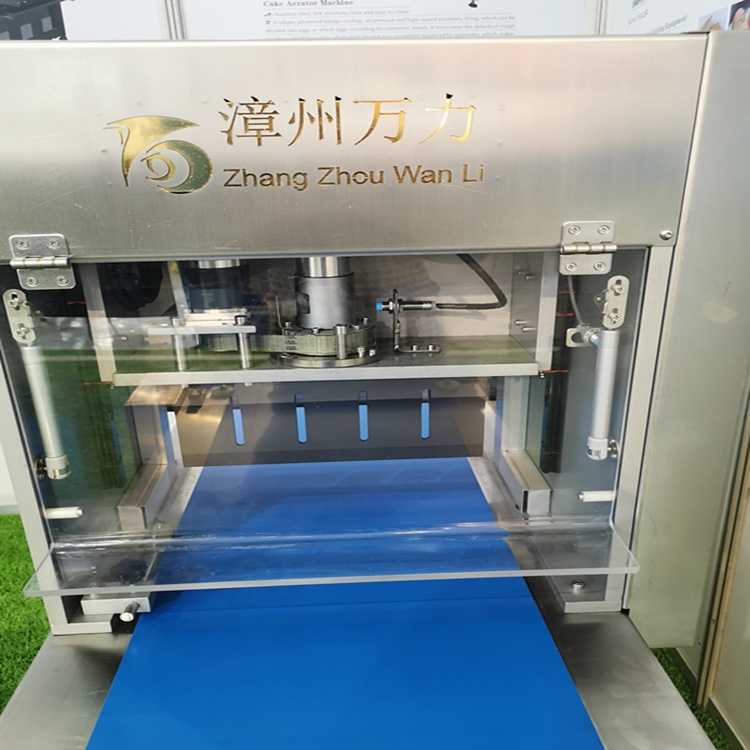

High Effective Ultrasonic Candy Cutter Equipment

High effective ultrasonic candy cutter equipment is a fully automatic high-performance food cutting equipment with multiaxis standard control system. The actual food production can fixed positioning and complete all operation automaticly according to the need. The machine is a very practical and user-friendly machine for all baked food manufacturers who need to cut a large amount of chocolate, nougat, fudge, haw jelly, marshmallow, mochi and other candy into pieces. This series of equipment can be connected to the production line to realize fully automated production. The design concept of ultrasonic food cutting equipment is to improve and enhance the consistency of candy cutting, as well as increase production efficiency, save cost and return on investment of manpower, and the cost can be recovered in the short term. It can cut a variety of products, including normal temperature food, frozen food (above minus 18 degrees Celsius) and high temperature food (below 50 degrees Celsius).

High Effective Ultrasonic Candy Cutter Equipment

High effective ultrasonic candy cutter equipment is a fully automatic high-performance food cutting equipment with multiaxis standard control system. The actual food production can fixed positioning and complete all operation automaticly according to the need. The machine is a very practical and user-friendly machine for all baked food manufacturers who need to cut a large amount of chocolate, nougat, fudge, haw jelly, marshmallow, mochi and other candy into pieces. This series of equipment can be connected to the production line to realize fully automated production. The design concept of ultrasonic food cutting equipment is to improve and enhance the consistency of candy cutting, as well as increase production efficiency, save cost and return on investment of manpower, and the cost can be recovered in the short term. It can cut a variety of products, including normal temperature food, frozen food (above minus 18 degrees Celsius) and high temperature food (below 50 degrees Celsius).



Technical parameters

Can Handle Size Range The maximum width of 300mm
Temperature Range -18℃—40℃
Height of the Effective Blade 80mm
Can Be Cut Type sheet slicer
Control System Six-axis Control System
Mechanical Material Stainless Steel
Blade Material Titanium
Operation Mode Automatic
Operation Interface Touch Screen
Food Loading Mode Semi-automatic
Cutting Can Control Height YES
Cutting Can Control Angle YES
Cutting Accuracy ±0.2mm

1.The length of the whole high effective ultrasonic candy cutter equipment is 1.2M(divided into 2 sections). Width is 0.3M.2.Equipped with material testing device.3.Can cut long strips of food up to 4 cm in diameter.4.Cutting speed up to 70 times/minute

Application

  • Dough

  • Marshmallow, Turkish delight

  • Bar cakes

  • Long bar candy

  • Nougat

  • Turkish delight

  • Cookies

Our Advantages

Customized--We are the manufacturer!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have CE and quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.

Our Service
We provide free technical service about spart parts and application issues.
Free on-site touring and introduction of our factory.
We provide process design and validation for free.
We can guarantee on-time delivery of goods.
Close follow-up of all orders by special person and keep customers informed timely.
All after-sale request will be responded in 24 hours.

FAQ

Q: What is your MOQ ?

A: We accept any quantity as your need.



Q: What should I do before ordering?

A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.



Q: Do you have a export licence?
A: Yes.

Q: Do you have after-sale service?
A: Yes, Good after-sale service, handling the customer complaint and solve problem for customers.

Q: How is the packing of products?
A: The products are packed in wooden boxes, and the materials of the wooden boxes meet the safety standards of foreign import and export.

Q: Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that.



Q: What is your payment term?

A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery.
We also accept LC at sight.
