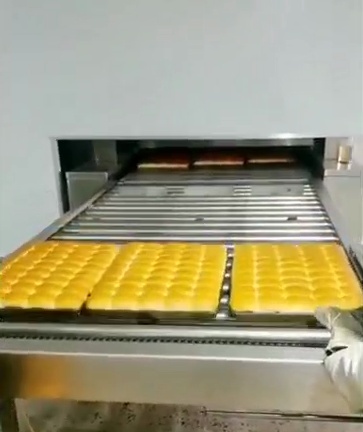

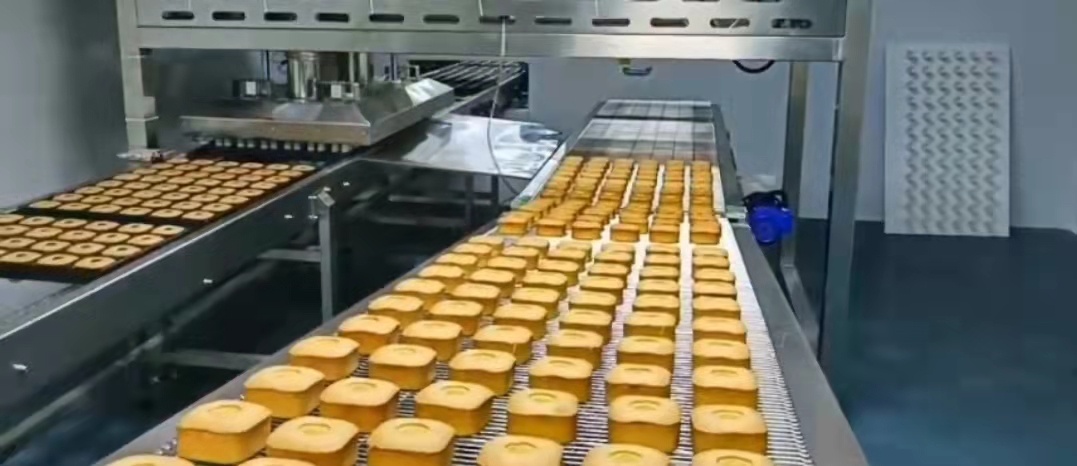

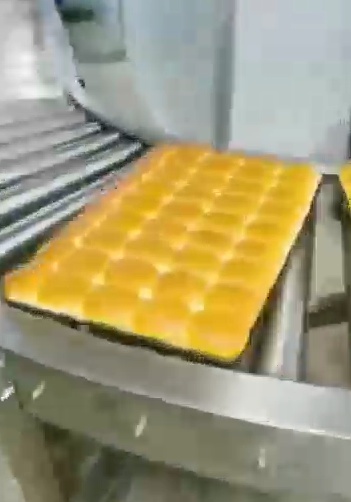

Cake Bread depanning production line

Bakery depanning production line is beautiful in shape, bright, clean and hygienic in appearance, equipped with advanced PLC programmable control system, combined with electricity and gas, good stability, reduce the link of human contact with food in the middle, save manpower, reduce cost and ensure the quality of food products.



Bakery depanning production line

Products Introduction:

For the bakery food from the oven to depannining, using chain plate conveyor line,vibrator with automatic stop plate,90 degree turning machine, the automatic depanner production line and converyor greatly improve the yield of bread and cake, reduces the loss caused by manual depanner, increases the service life of the baking pan, saves production costs and improves production efficiency.





Machine parameters:

Name
Bakery depanning production line
Model

WANLISP2205PLUS

Dimensions

According to customers’ virtual factory size

Weight
Net Wt.:300KGS; Gross Wt.:400KGS
Voltage
380V
Rated power
1100W/7000W
Frequency
50Hz
Machine materials
Stainless steel
Capacity
1-5 times per minute (1-4 disks per time)
Certification
CE
Function
enables the bread, cake or other foods removal rate to reach 99.99%, and the food is placed on the conveyor belt smoothly, and the empty baking tray after the mold release is sent to the baking tray washing machine.

Technical Features:

  1. The unique mobile equipment design enables the bread, cake or other foods removal rate to reach 99.99%, and the food is placed on the conveyor belt smoothly, and the empty baking tray after the mold release is sent to the baking tray washing machine.
  2. The machine is beautiful and bright in appearance, clean and hygienic, and equipped with advanced PLC programmable control system. It combines electricity and gas phase, and has good stability.eliminates the traditional manual buckle, reduces secondary pollution of the product, saves manpower and reduces The cost guarantees the quality of the food product.
  3. stainless steel 304 structure; Thickness of the Square tube: 80*80
  4. Demoulding Speed: 1-5 times per minute (1-4 disks per time)
  5. Voltage: 380V;  Power: 6KW; Air pressure: 8-10kgf/cm

Flexible models for overturning or pick and place

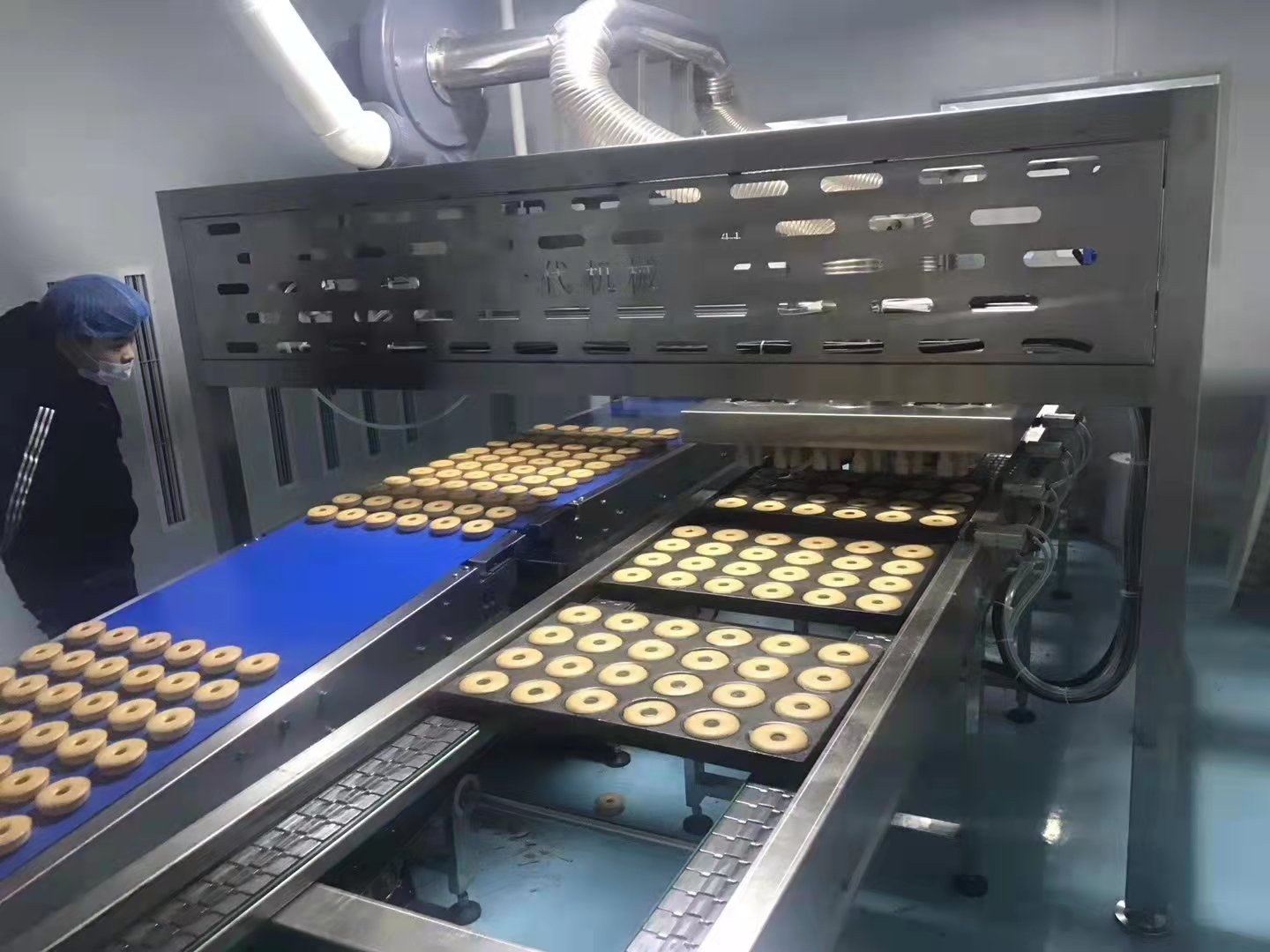

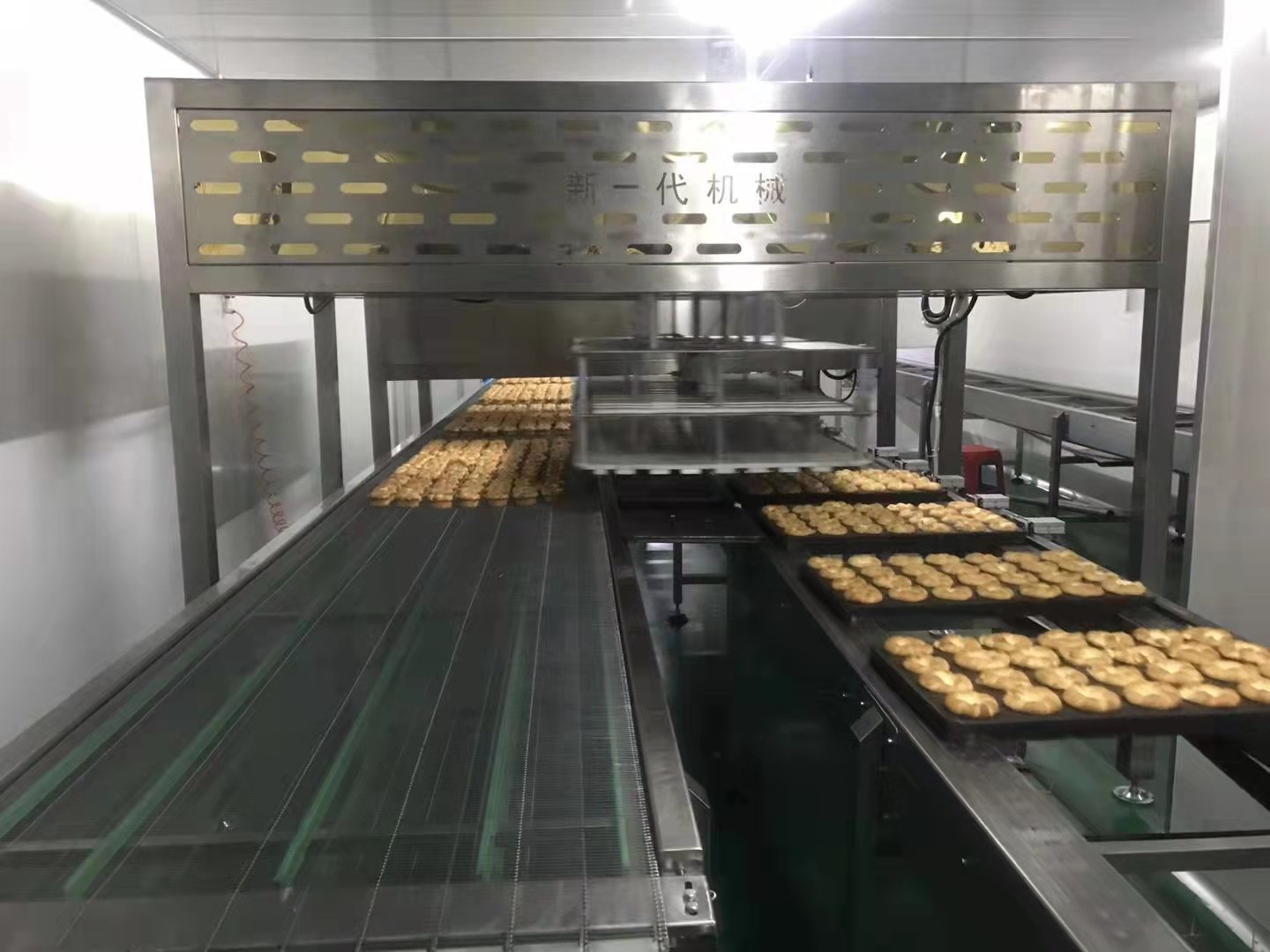

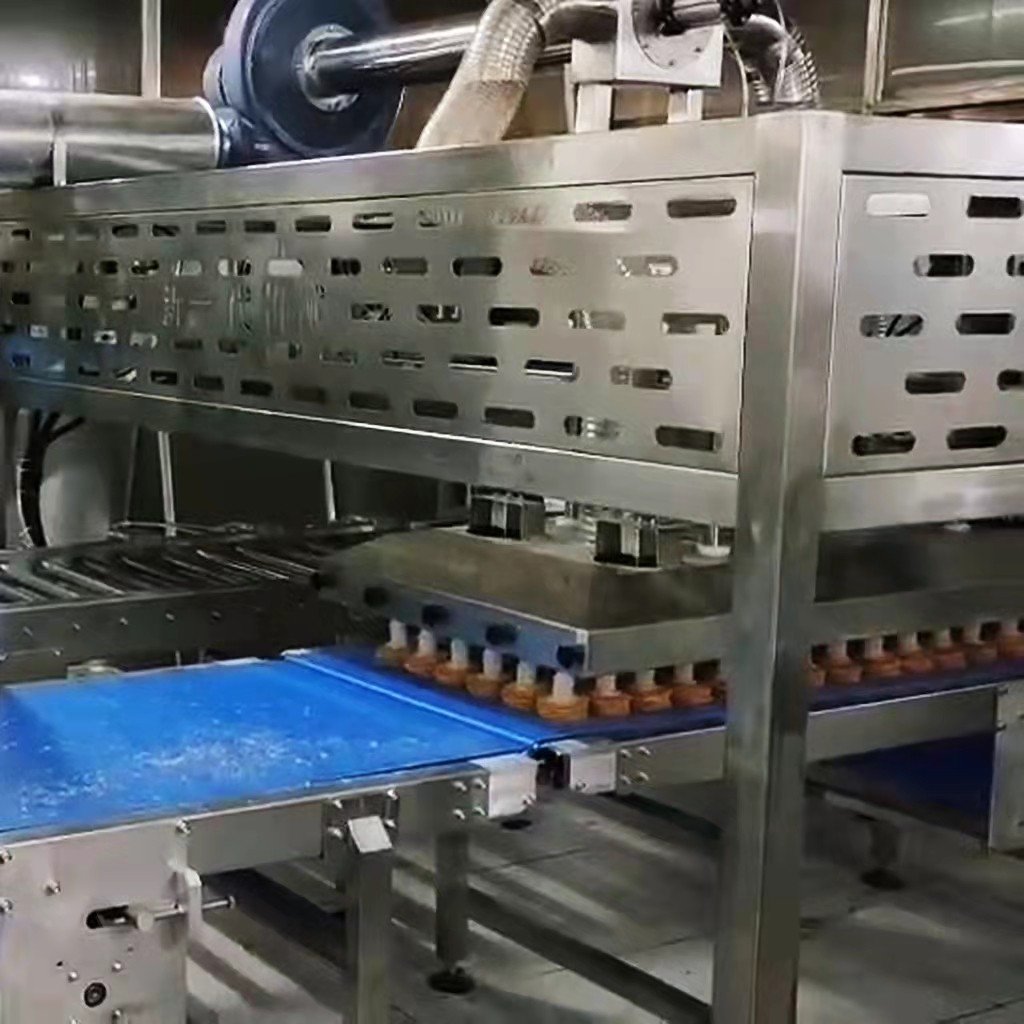

The WANLI model sliding head depanner can use needles, suction caps or clamps to transfer products from baking trays onto a conveyor, and can be supplied with servo-motors to increase precision and throughput.

The high capacity WANLI depanner overturns trays to gently and accurately transfer products onto the forward conveyor. A smaller version is available for lower capacity requirements, and can also be used to overturn trays for cleaning.

The versatile Robot depanner can be used to overturn trays, and can also be fitted with needles, suction cups or claps to pick products from their trays for precise placement on the next conveyor.



Main Structure:

1. Chain plate conveyor line
2.Vibrator with automatic stop plate
3.90 degree turning machine
4.depanner machine and converyor

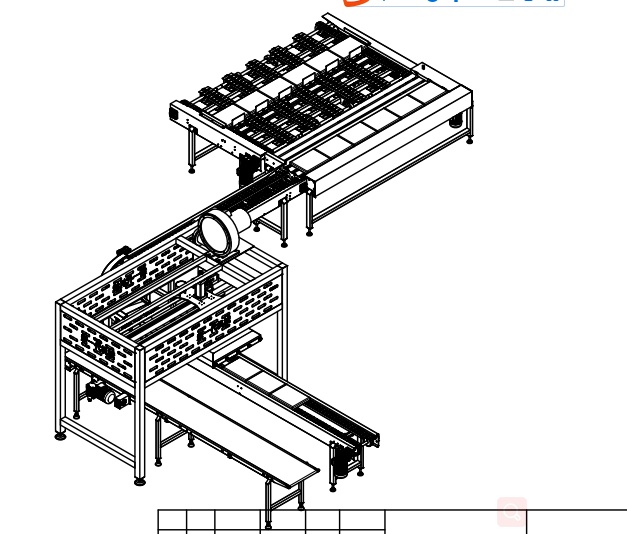

Drawing:
