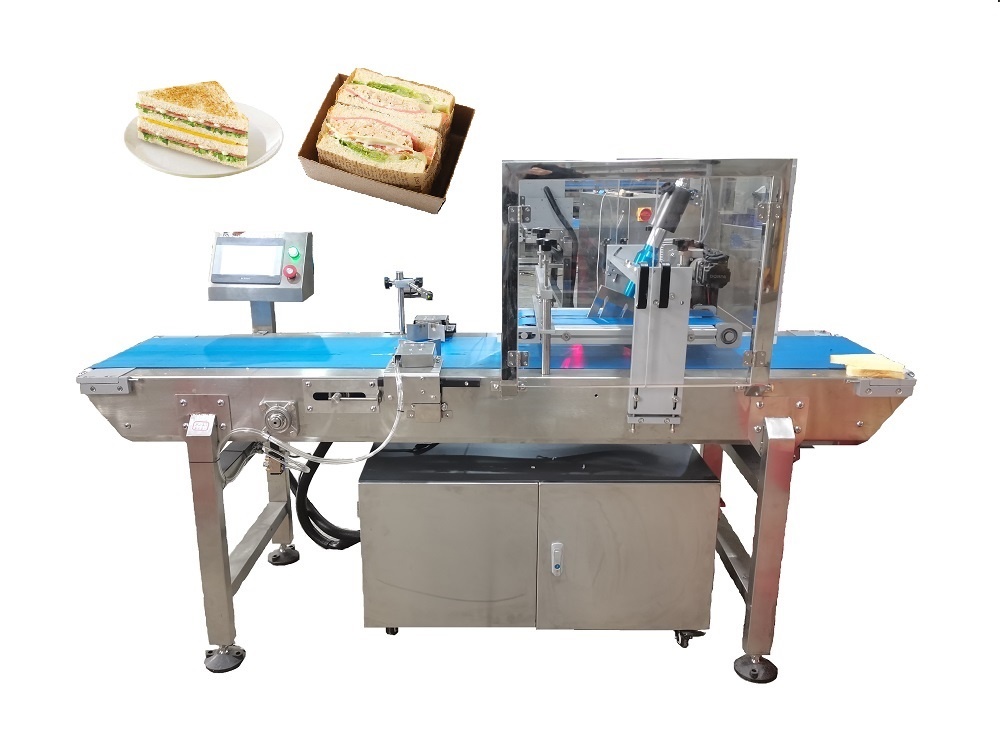

Automatic Ultrasonic Food Cutting Machine for Sandwich Cake Bread

Automatic Ultrasonic Food Cutting Machine for Sandwich Cake Bread

Category Ultrasonic Sandwich Cake Cutting Machine Tags bakery food cutting machine, bread cutting machine,round cake slicer equipment,ultrasonic bread cutter machine,ultrasonic cake slicing equipment,cake machinery, food cutting machine, Sandwich Cake Cutting Machine, Ultrasonic Cutter for Sandwich Cake, Ultrasonic Cutting Machine for Sandwich Cake, Ultrasonic Sandwich Cake Cutter, Ultrasonic Sandwich Cake Cutting Equipment, Ultrasonic Sandwich Cake Cutting Machine

Ultrasonic Sandwich Cake Cutting Machine

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.

Products Introduction:

It uses 4-axis servo driver system, can be applied to steel slat type of cake production line, with the advantage of high output, continuous cutting, convenient operation, automatic tracking, low failure rate, and highly automated, which make it can achieves 180 cuts/minute, besides of frequency ultrasonic scan and fault indicator lamp, this type has flip detection to avoid accidents.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.

Standard Parameter

Model	Wanlisonic 160K(with 2 baldes)
Dimensions	L1700W600H1400mm
Weight	Net Wt. 200KGS, Gross Wt.330KGS
Voltage	220V
Rated power	4000W
Frequency	50Hz-60Hz
Cutting speed	80 cuts/minute
Number of blades	1
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	sandwiches cutting
Maximum cutting size	12cm*12cm, height below 10cm
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

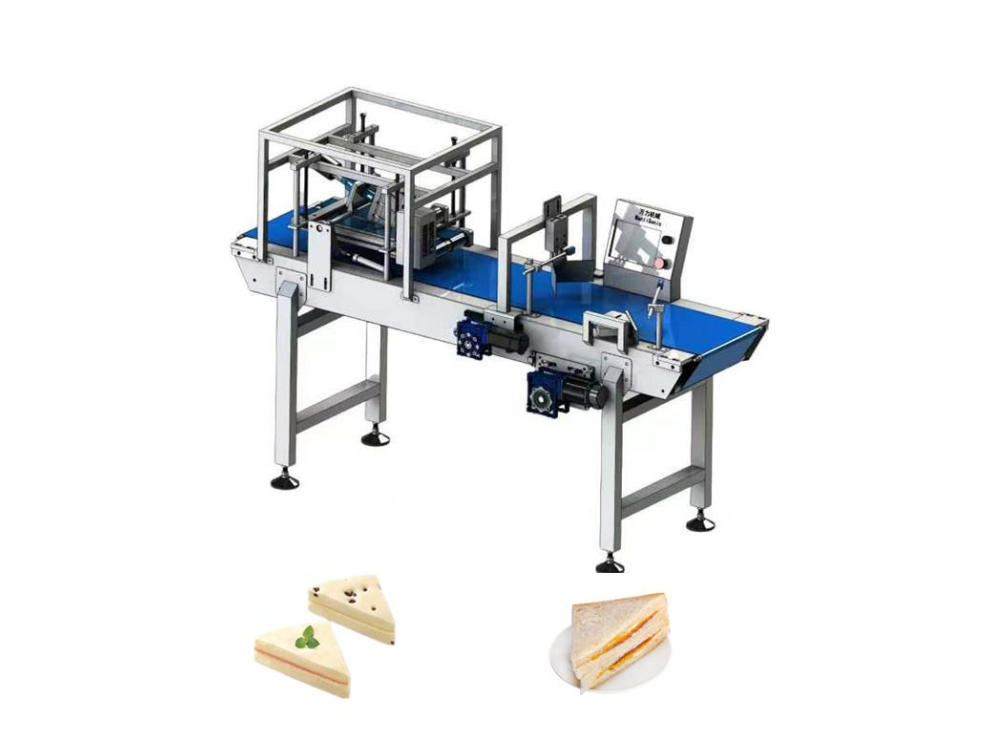

Cutting Schematic Model

Advantages:

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

CERTIFICATION

Our customers

Our Company and Advertisements

ZHANGZHOU WANLI MACHINERY CO.,LTD.

Zhangzhou Wanli Machinery Co., Ltd., , located in Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province. Zhangzhou Wanli Machinery Trade Co., Ltd. is the Foreign Trade Department and wholly-owned subsidiary of our factory. And we are also a company of integrating R&D, production, sales, and service. We are specializing in the research and manufacturing of high-tech food machinery, which provide a new mode of production for food companies. For example, ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.). Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting. Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions. We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!

Production Scene

Package and Deliver

Exhibition

FAQ

Q: What is your MOQ ?
A: We accept any quantity as your need.

Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you choose. If your orders are urgent, we will make it faster as your need.

Q: What's the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
