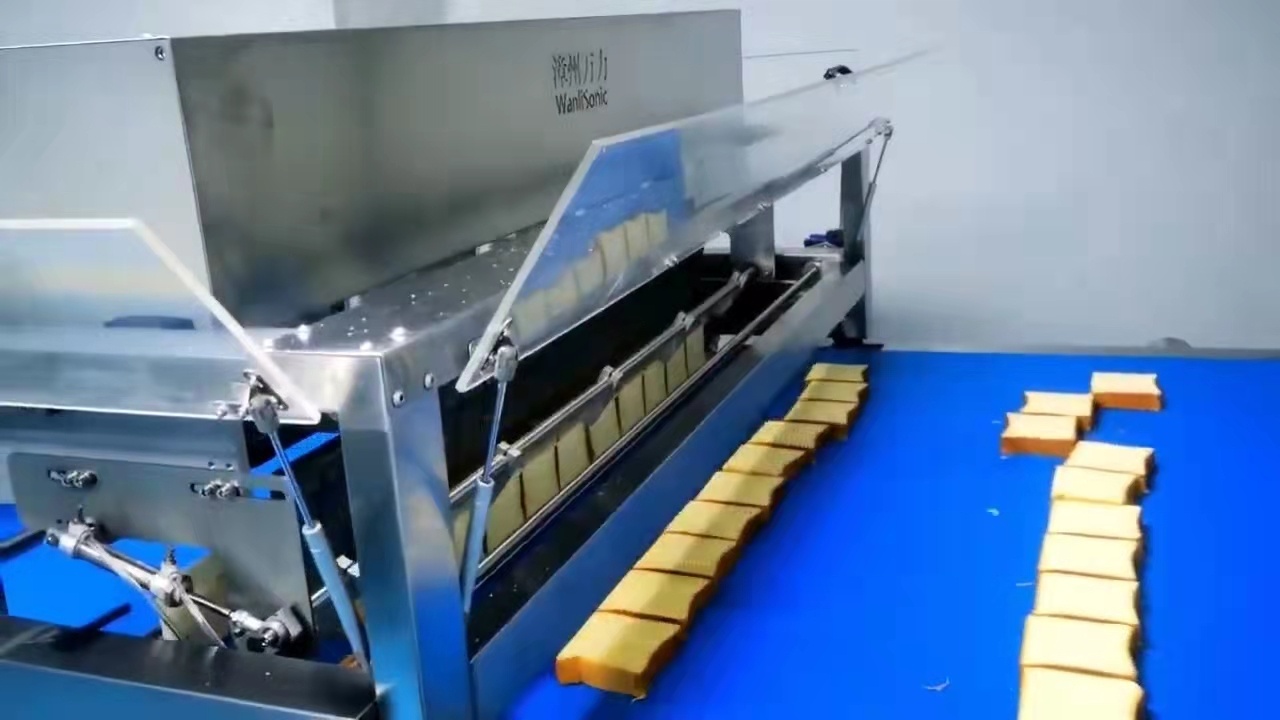

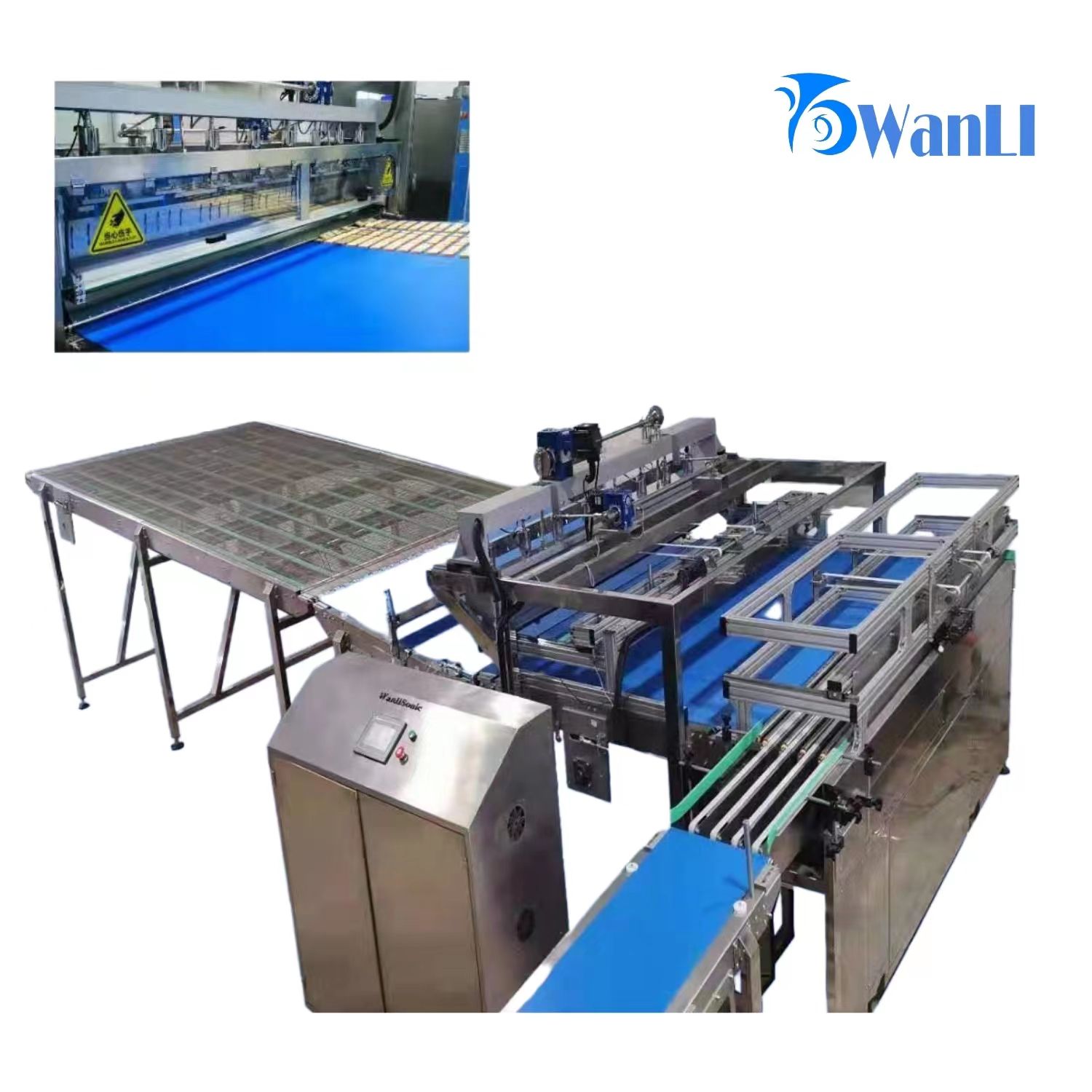

ultrasonic toast bread cutting machine

This is an ultrasonic cutting machine for food controlled by 5-axis servo motor system,, and it equipped with automatic paper removal function(optional), A high quality safety system prevents access of the cutting area during operation.After the setting is completed, a key start, automatic cutting.



Ultrasonic Toast Bread Cutting Machine

Toast Cutting Machine is used in the food processing industries to make the toast in various shapes and size, Wemake these Toast Cutting Machine with the latest technology and a super quality product , We have a experience team of engineer in out plant who is experts to make the machinery, we always bereave in best quality of raw material we imports the main parts for the best quality and never compromise with the quality, we deals in international and national markets and supply Toast Cutting Machine in a big inquiries. Our Machine consume very low energy and get very low maintenance.





Standard Parameter

Model

Wanlisonic8-300K

Dimensions

L1500*W2400*H2000mm

Weight

Net Wt. 550KGS, Gross Wt.600KGS

Voltage

220V, single

Rated power

10000W

Frequency

50Hz-60Hz

Cutting speed

10-180 cuts/minute( adjustable)

Number of blades

2-10 (optional)

Blade materials

Blade materials

Blade size

100-305mm(optional)

100-305mm(optional)

slices

Maximum cutting size

Width 600mm, height up to 100mm (optional)

Material of machine frame

Stainless Steel

Automatic belt convey

Yes

Convey speed

0-3000mm

Safety protection systemframe

Security door, frequency ultrasonic scan and fault indicator lamp

Control System

Four-axis Control System

Cutting knife control system

Servo motor

Certification

CE



Advanced Ultrasonic Systems for Food Cutting Applications
WANLI offers a complete line of specialized equipment and components for ultrasonic food cutting. Compared to conventional cutters, ultrasonic food cutters are more sanitary, with less down time, better cost-effectiveness and increased consistency at the cutting surface where the blades stay sharp longer.

Cutting tools are manufactured in-house by a precision wire EDM process that reduces stress for longer life. WANLI provides full customization of OEM components, kits and knife horns. Typical applications include cheese cutting; cake and dessert product cutting; confectionary product cutting; meat cutting; sandwich and wrap cutting.

Ultrasonic Food Cutting Features:
Stackable, ultrasonic power supplies and panel mount generator kits for NEMA enclosure, integration and sequencing
Rigid mount ultrasonic boosters for improved stack stability
Wash-down duty, air cooled converters (stainless steel body also available)
Food industry approved titanium blade, slitting and knife horns



PRODUCT CONFIGURATION


               Brand Ultrasonic Transducer         Brand Ultrasonic Generator           Titanium Alloy Blade



Cleaner cuts for outstanding aesthetics on layered products
The ultrasonic blade produces a nearly frictionless surface which minimizes sticking of food products and deforming. This process produces clean cuts without smearing when cutting multiple layers.

Reduce Scrap
Reduce scrap by not crushing your products or damaging them during the cutting process. Inclusions such as nuts, raisins & dried fruit, are sliced with little to no displacement, even in a soft matrix.

Consistent Result with Faster Process
Ultrasonic technology provides a larger processing window, food cutting speeds can be increased substantially, and it is easy to adapt the Dukane ultrasonic cutting equipment to your existing production lines.

Reduce Downtime
No need to frequently clean blades when cutting sticky products



How Ultrasonic Food Cutting Works and Why You Should Consider It?
Ultrasonic food cutting is a process utilizing knives that vibrate at high frequency.
Applying ultrasonic vibration to a cutting tool creates a nearly frictionless cutting surface which provides many benefits.This low friction cutting surface can slice a multitude of food products cleanly and without smearing. Very thin slices are also possible due to the reduced resistance.
Foods containing items such as vegetables, meats, nuts, berries and fruits can be cut without deformation or displacement of the internal product. The low friction condition also reduces the tendency of products like nougat and other soft candies from sticking to the cutting tools, resulting in more consistent cuts and less down time for cleaning.
And because of the advanced process control that is available in ultrasonic generators, cutting performance can be easily manipulated by simply adjusting the equipment parameters.



WANLI Ultrasound Cutting Solutions
Ultrasound cutting machines might seem like the next-gen technology, but they are not hard to find. In fact, WANLI’s ultrasonic cutter is present in most commercial kitchens and food processing plants.

Our range of ultrasonic food cutting machines and robots are present in different configurations and you can request the one that fits your needs perfectly. Here are some of the features of



WANLI’s cutting solutions:

The auto-cleaning mechanism can automatically clean the cutting blade at the right time.
Equipment comes with compatible software that can be used to set up the cutting and cleaning operation.
Option to create different cut patterns, with new cut patterns getting accommodated instantly.
Feature to check for defective products and reject them from the chain.
Works in tandem with all your present conveyor systems or other food-related equipment.



Conclusion
To keep up with the competition, you need to use the latest trends and innovations. Ultrasonic cutters are one of these innovations which has become a game-changer in recent years.

With WANLI’s range of products, you will always be one step ahead in the market. The best part is that you can customize the product to suit your requirement and current plant setup.
