Swiss Roll Cake Ultrasonic Cutter

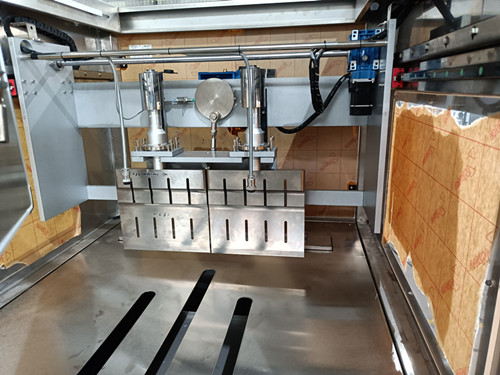

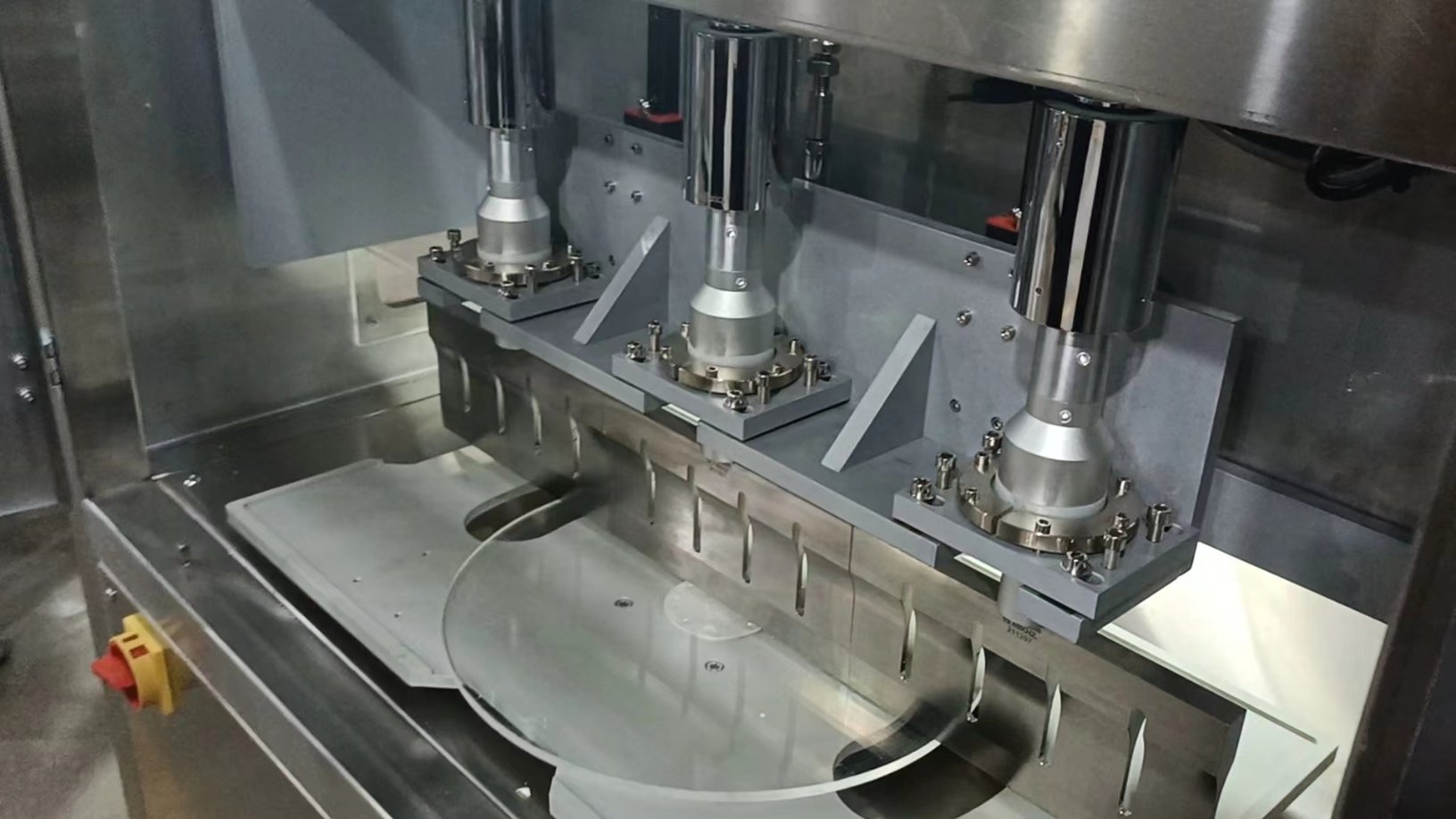

Swiss Roll Cake Ultrasonic Cutter The ultrasonic cake slicer is a machine designed for the accurate slicing of round cakes. It can slice a large variety of products in size, number of portions and temperature range.



Swiss Roll Cake Ultrasonic Cutter

The ultrasonic cake slicer is a machine designed for the accurate slicing of round cakes. It can slice a large variety of products in size, number of portions and temperature range.

This ultrasonic cake slice machine is equipped with 2 cutting tables for a high production output.It has the function of automatic cleaning, disinfection and cleaning with blade to prevent mould breeding, clean environmental protection and sanitation.







PRODUCT SPECIFICATIONS
Model
Wanlisp2-305K920L1700
Dimensions
L1270*W920*H1700mm
Weight
Net Wt. 320KGS, Gross Wt.420KGS
Voltage
220V
Rated power
8000W
Frequency
50Hz-60Hz
Cutting speed
35-60cuts/minute
Number of blades
2 (optional)
Blade materials
Titanium Alloy
Blade size
160-305mm(optional)
Cut type
Square, rectangular, cake slice, if cut triangle shape, need to lengthen the blade width
Maximum cutting size
600mmx400mm,food cutting height up to 80mm, blade up height:100mm. food height exceeds 80mm can be customized
Material of machine frame
Stainless Steel
Self cleaning
Yes or optional, need water and air compressor 7KGS
Safety protection system
Infrared inspection, frequency ultrasonic scan and fault indicator lamp
Control System
Four-axis Control System
Cutting knife control system
Servo motor
Machine mobility
Casters
Certification
CE

Quick Details

Condition: New

Applicable Industries: Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: Brazil, Malaysia

Showroom Location: United States, Indonesia

Place of Origin: Fujian, China

Brand Name: Wanli

Type: Cooking Equipment, Food Ultrasonic Portioning Machine

Warranty: 1 year, 1 Year

After-sales Service Provided: Field installation, commissioning and training, Overseas service center available

Application fields: Bakery

Machinery Capacity: Cut food smoothly and beautifully

Machinery Function: Cutting Equipment

Certification: CE CQC ISO9001

Process: cake baking

Usage: Food Industry Equipment

Maximum effective cutting height: 80mm (100mm optional)



Main Features:

1.Adopt Ultrasonic Knife for Cutting based upon theory of hyper vibration, no crumb, no dripping, the cut is fine and smooth;

2.Applicable for cutting of frozen cakes, like heavy cheese, mousse cake and ordinary products, for example: Chiffon cake,Sponge cake and Swiss Roll, also it is applicable for cutting of bread and pizza;

3.Setting for many cutting modes for slice, square and triangle;

4.Easy and convenient operation, saving labor force;

5.Wecon Touchscreen and PLC, with 10 sets of operation modes;

6.Wecon Servo control, high durability, low failure rate, accurate positioning, and extremely little error during cutting process.



Equipment Introduction
- Ultrasonic cutting machine to automatically cut round products; Like round cakes, pizza etc.
- Allow to set cutting mode, include circle size cut.
- Easy to operate,labor saving.
- Open machine design for easy.
- PLC control system.
- Strong stainless steel machine frame for a rough bakery working day.

The ultrasonic cake slicer is a machine designed for the accurate slicing of round cakes. It can slice a large variety of products in size, number of portions and temperature range.

This ultrasonic cake slice machine is equipped with 2 cutting tables for a high production output.It has the function of automatic cleaning, disinfection and cleaning with blade to prevent mould breeding, clean environmental protection and sanitation.

Feature

Smooth cut, ultrasonic knife used, no sticky, no crumbs

Various cutting styles, cutting into pieces, diamonds, triangles and circles

Different products can be cut, cakes, bread, and pizza and so on

With a good interface, easy for operation

Orders available for any different products

Suitable Industries

food cutting

cake cutting

cheese cutting

bread flour group cut

cookies cookie cutting
soft sugar finishing

pizza cheese butter

frozen meat cutting

plant fiber, nut cutting
all kinds of rubber cutting

Supply Ability:

30 Set/Sets per Month

Packaging & Delivery

Packaging Details: waterproof packing

Port: Xiamen

Lead Time :

Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
