nougat candy ultrasonic cutting machine

cut and separate all portions in line, also for chocolate with specific blades.
All sticky products as caramel are easy for us to cut.
For the last 10 years we design and manufacture the ultrasonic generators, transducers, boosters and blades, of our own machines.

Products Introduction

We manufacture machines able to cut and separate all portions in line, also for chocolate with specific blades.

All sticky products as caramel are easy for us to cut.

For the last 10 years we design and manufacture the ultrasonic generators, transducers, boosters and blades, of our own machines. Making an ultrasonic cutting head is an Art with lots of know-how behind, and a specific application needs a specific cutting head.

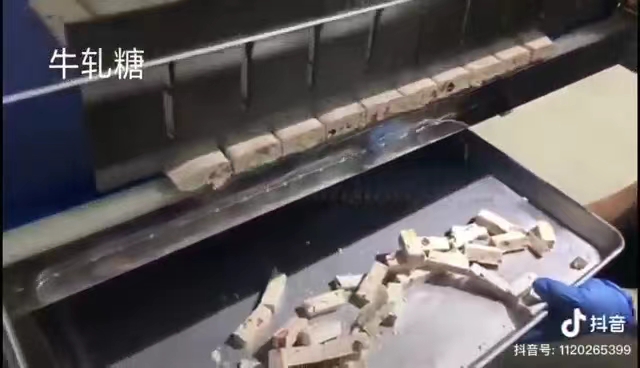

ultrasonic bakery food cutting machine for nougat candy

No sticking to the blade, which is particularly important for some very sticky confectioneries and for chocolates in general

Possibility to install air blowers close to the blade, to prevent products from falling on the blade

Perfect clean cut surface WITHOUT damaging some delicate confectionery or chocolates

Possibility to automatically clean the blade, between each product, to avoid any cross contamination, such as bacteries or allergens, through the cutting



Standard Parameter

Model Wanlisp4-300K1450L2000
Dimensions L2000*W900*H1400mm
Weight Net Wt. 210KGS, Gross Wt.310KGS
Voltage 220V
Rated power 5000W
Frequency 50Hz-60Hz
Ultrasonic Frequency 20000Hz
Amplitude 20%-40%
Cutting speed 60 cuts/minute( adjustable)
Number of blades 2 (optional)
Blade materials Titanium Alloy
Blade size 300mm/pc (optional)
Cut type slices
Maximum cutting size Width900mm, food cutting height up to 80mm, blade up height:100mmif food height is more than80mm,need to customize
Material of machine frame Stainless Steel
Automatic belt convey Yes
Convey speed 0-3000mm
Safety protection system Security door, frequency ultrasonic scan and fault indicator lamp
Control System Four-axis Control System
Cutting knife control system Servo motor

Applied to variety of food:
Confectionery, Caramel, fudge, nougat and chocolate cutting, portionning etc.



PRODUCT CONFIGURATION



Brand Ultrasonic Transducer                                                 Brand Ultrasonic Generator                                                            Titanium Alloy Blade



Cut deep frozen confectionery at high speed with our unique SODEVA patented teeth or micro-teeth blades.

Our technology is at the edge of the art, supported by patents, and our solutions are proven with dozens and dozens of recent machines installed worldwide.

You could like our option to cut and space in between each cut to ease the packing:

You could aprreaciate our CONTINUOUS CUTTING lines, with AUTOMATIC WEIGHT REGULATION, and / or combined also with the CUT N PUSH option at the same speed of the CONTINUOUS FEEDING!

At the end, our machines are extreemly accurate (with an intensive use of servo-motors), more flexible (versatility of size and shapes you will be able to use in the same machine), and more economical to buy and to operate (check our price against the competition and you will see); this will give you a much faster return on the investment.

Please contact us, so we can help you decide which of our standard machine is best for your application, or we can adapt one of our best seller to your needs!



Our ultrasonic cutting and portioning machines are particularly adapted to confectionery for the following reasons:

High accuracy 3D-VISION for FIXED WEIGHT slicing to the GRAM

Compact and scalable machines as per your needs

Wide products variety slicing without any tool changing

High speed slicing : 60 to 120 strokes / min per blade

Wash down, and easy to maintain

Very competitive price
