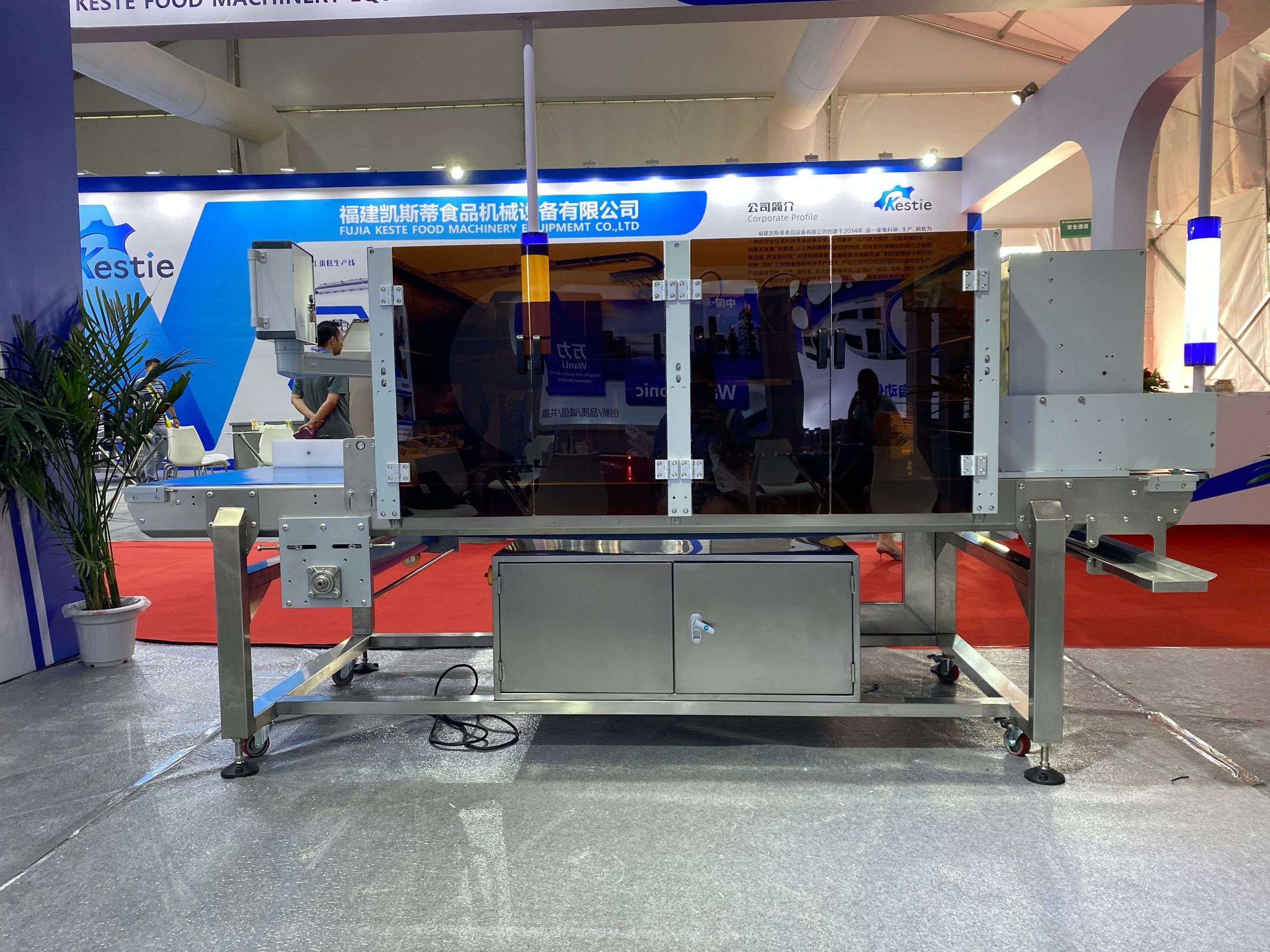

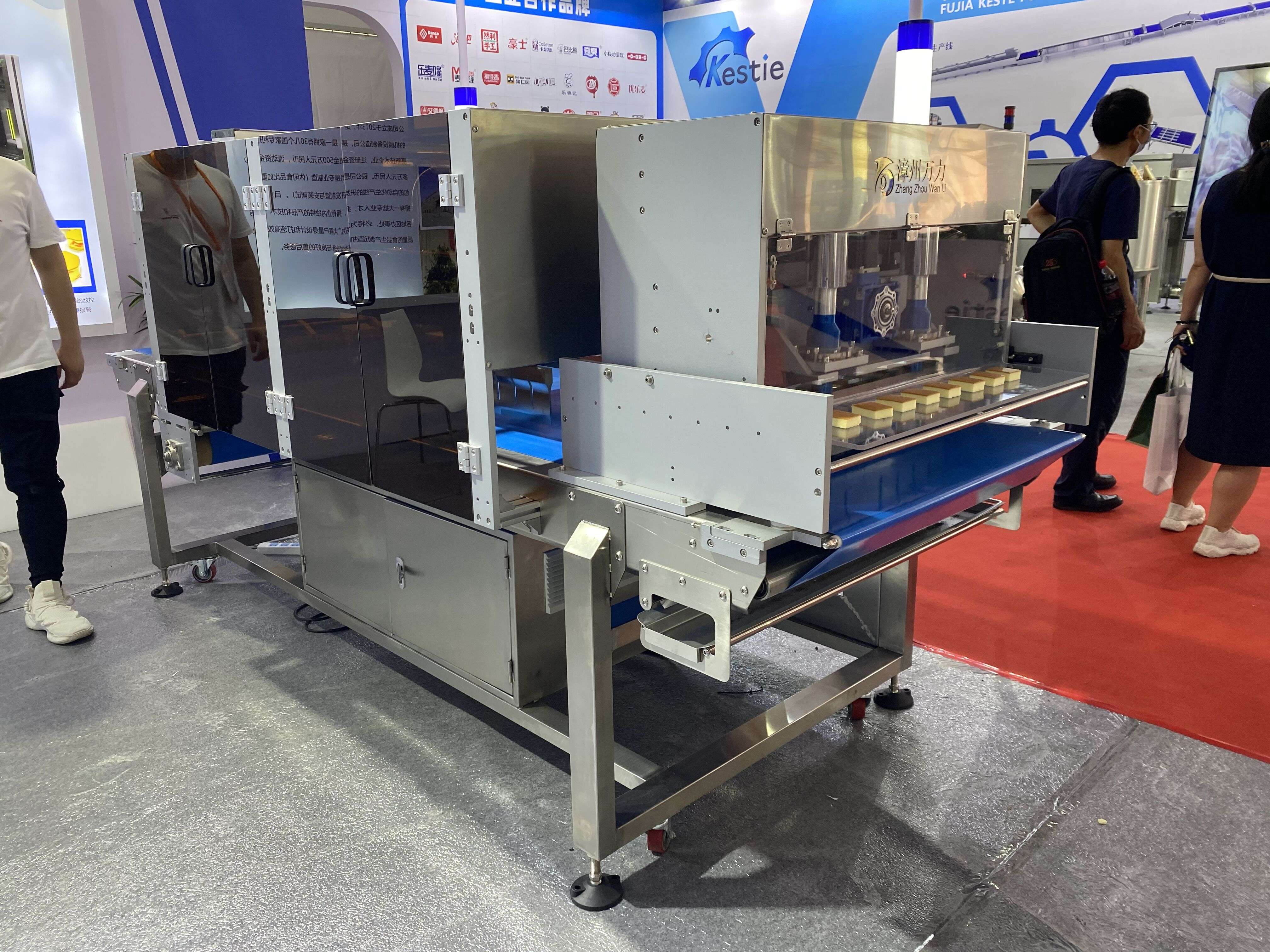

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic ice cream cutting equipment is ice cream, ice cream cake, frozen cheese cake, frozen mousse cake, frozen dough and other frozen food the best choice. Ultrasonic food cutting equipment can cut the food under extreme conditions, cutting temperature is low, hard frozen food when its advantages are more prominent, because the use of high-frequency vibration of ultrasonic cutting, so the cutting only need to apply a small external force, then Can be easily cut molding, so the wear of the tool is smaller, the general tool life cycle than ordinary steel knife, disc knife length of at least 3-5 years. This ultrasonic ice cream cutting machine is suitable for food companies producing 50-150 cakes per hour, and can be customized and designed according to the actual requirements.

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic ice cream cutting equipment is ice cream, ice cream cake, frozen cheese cake, frozen mousse cake, frozen dough and other frozen food the best choice. Ultrasonic food cutting equipment can cut the food under extreme conditions, cutting temperature is low, hard frozen food when its advantages are more prominent, because the use of high-frequency vibration of ultrasonic cutting, so the cutting only need to apply a small external force, then Can be easily cut molding, so the wear of the tool is smaller, the general tool life cycle than ordinary steel knife, disc knife length of at least 3-5 years. This ultrasonic ice cream cutting machine is suitable for food companies producing 50-150 cakes per hour, and can be customized and designed according to the actual requirements.



Ultrasonic Frozen Ice CreamCutting Machine

Product Name Automatic ultrasonic slicing machine ultrasonic frozen ice cream cutting machine
Model Wanlisp4-300K900L3500
Material Titanium Alloy
Machine Size L3.5M*W0.9M(divided into 2 sections)
Ratde Voltage 220V
Frequency 50HZ
Power 5000W
Can cut size 600mm*600mm
Cutting speed 60 times/minute
Can be controlled by touch screen Yes
Condition New

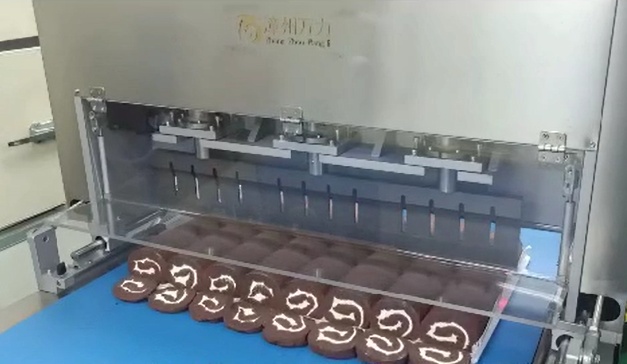

For dicing or slicing bread and cakes.Equipped with material rotating device.

The full set of action is driven by the Servo Motor.

Principles of editing:

The acoustic cutting machine is basically composed of.Ultrasonic transducer, ultrasonic lug, ultrasonic cutting knife, ultrasonic generator.

Ultrasonic generator:

The mains are converted to high-frequency high-voltage ac current, which is fed to an ultrasonic transducer.The ultrasonic transducer ACTS as an energy conversion device, converting the electrical input into mechanical energy, or ultrasonic.The frequency of the ultrasonic transducer is the same as that of the high-frequency ac current supplied by the driving power.

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Ultrasonic Frozen Ice CreamCutting Machine

Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should I do before ordering?

A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?

A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.

Q: What’s the warranty of your products?

A: Provide Free Maintenance Within One Year. Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?

A: TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?

A: We can send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
