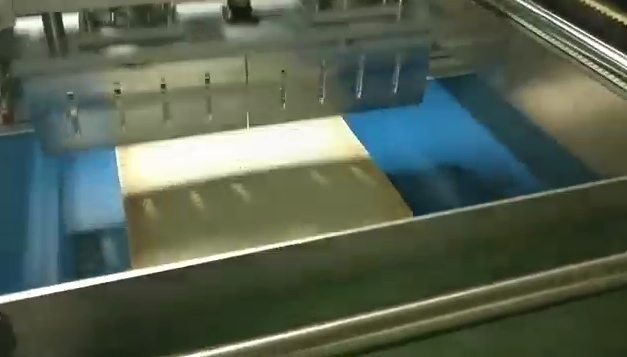

Sponge Cake Ultrasonic Cutting Machine

Controlled by 5-axis servo motor system, can be linked to chain slat type tunnel oven, automatic belt convey and cutting products of 600x600mm, and it equipped with automatic paper removal function(optional), and security system of security door, frequency ultrasonic scan and fault indicator lamp.

Sponge Cake Ultrasonic Cutting Machine

Sponge Cake Ultrasonic Cutting Machine  is mainly for cutting cake, caramel treat, corn cake, rice candy, peanut brittle, nougat and other food into cube or rectangle shapes.

it is made of stainless steel 304.
This machine adopts cursor location design, which can cut the food by transverse vertical cutting.

Ultrasonic Cake Cutting Machine offers clean cut of cake by using vibrations with
60 times per minute. This vibrations minimizes friction between cakes and cutter to improve productivity.

PRODUCT SPECIFICATIONS

Model

Wanlisp4-300K900L3500

Dimensions

L3000*W1400*H1550mm

Weight

Net Wt. 550KGS, Gross Wt.600KGS

Voltage

220V, single

Rated power

8000W

Frequency 50Hz-60Hz

Ultrasonic Frequency

20000Hz

Amplitude

20%-40%

Cross cutting speed

20-60cuts/Minute; high-speed model:60-180cuts/Minute

Slit cutting speed

30-40cuts/Minute; high-speed model:40-100cuts/Minute

Number of blades

4 (optional)

Blade materials

Titanium Alloy

Blade size

300mm/pc (optional)

Cut type

Square, rectangular, slices

Maximum cutting size

400mmx600mm,food cutting height up to 80mm, blade up height:100mm

Material of machine frame

Stainless Steel

Automatic belt convey

Yes

Convey speed

0-3000mm

Safety protection system

Security door, frequency ultrasonic scan and fault indicator lamp

Control System

Five-axis Control System

Cutting knife control system

Servo motor

Application Process

Product Description
WANLI Automatic Ultrasonic Cutting Cut Cake Food WANLI is a specialist supplier of machines to the food manufacturering industry. One of the company’s innovations is the adoption of ultrasonic cutting technology, giving best-available cut quality for products that are difficult to process using conventional methods. Cakes, in particular, are notoriously difficult to cut reliably: machines tend to be time consuming to set up for different cake sizes, depths and portion numbers, whilst traditional cutting technologies can result in uneven, messy cuts and unacceptable levels of damaged product.
ultrasonic food cut machine is a desktop food cutting equipment, is a new generation of economical ultrasonic food processing equipment. The machine has a wide variety of cutting modes, and the operator can operate on the touch screen to select the most suitable cutting mode, which can handle different types of food such as round cake, pizza, Nagasaki cake, sandwich and so on. The machine can cut 10-inch round cake, any size rectangular, cut round, sliced, cut rectangular, cut triangle can be. In addition, it has a small size, easy to carry the characteristics of cutting when the safety grating as a protective, in the cutting process of human intervention, the device will promptly stop cutting, the maximum protection of the operator’s personal safety.

Fulfilling wide requirements of clients successfully, today, we re recognized as the prominent manufacturer and supplier of an excellent quality Ultrasonic Food Cutter. Available with all kinds of shapes and designs of ultrasonic blades, these machines are highly suitable for almost all kinds of food cutting applications. Our highly experienced uses premium quality materials for manufacturing this Ultrasonic Food Cutter in strict confirmation with industry standards. In market, it is available at economical price.

Features:
1. Applied to automatic production
2. Long time used
3. Fine finish of surface, good adhesivity.
4. Speed, efficient, non-pollution. Efficiency will be increased by 10 times.
5. Cutting difficult materials, to solve processing problems
6. Satisfy with different processing demands.
7. Complete range of articles, cutting knife can be customized by requirements.

8.  Less labor, and easily control.

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.
2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

We develop and produce ultrasonic equipments which we sell as complete units or individual assembles such as generators and converters. Our customers and special purpose machine builders benefit from high-quality components and machines with simple, user-friendly operation. We are committed to providing solutions that can meets the needs of our customers, providing the latest in technology, both in products and processes.

For us, quality is not just an empty word but a basic attitude which is the foundation for our thinking and actions. Each product has checked by our QC department before sending to our customers.

Free test

Economic, Environmental & compatible design of all products

Easy maintenance & inexpensive spare parts

24 hours technical supports and after sales services

Diversity of customized services, Strong OEM capability available

One step sourcing on all ultrasonic products

The most professional team in line of ultrasonic

FAQ
1.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
