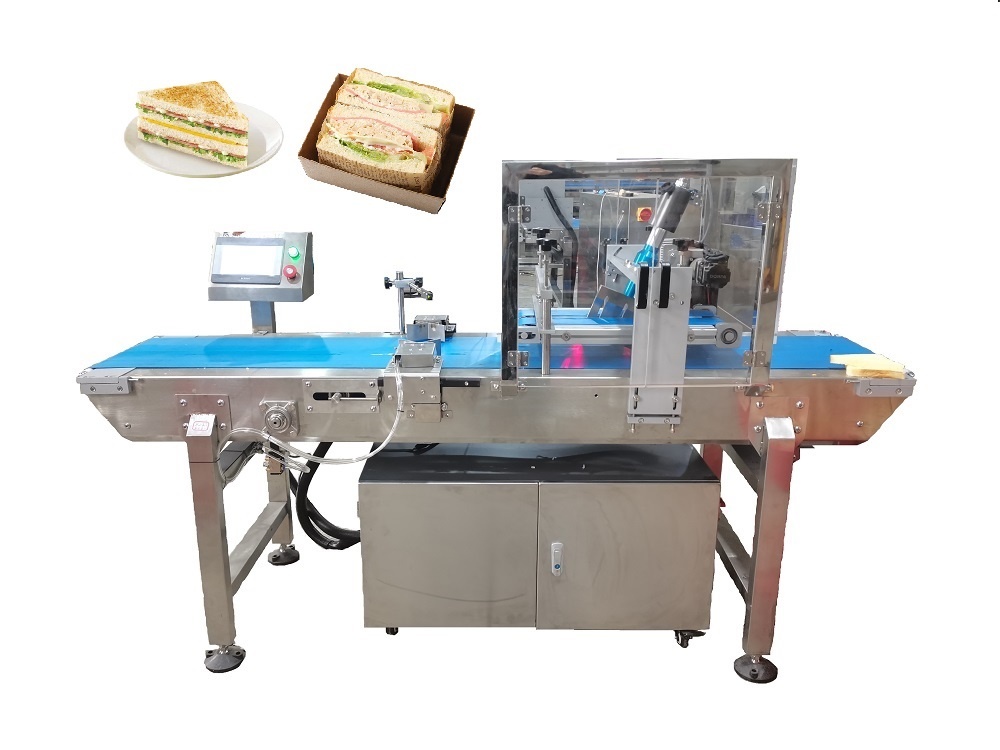

automatic 2 blades ultrasonic sandwich bread cutting machine

Ultrasonic Sandwich Cake Cutting Machine

Ultrasonic Sandwich Cutting Machine offers a nice cut surface of sandwich by using a 20,000 times per second of ultrasonic vibration. This vibrations minimizes friction between sandwich and cutter to improve productivity.The device has slice mode for sandwich and other foods need one diagonal cutting mode. Working speed and angle parameters are adjustable. For the triangle shape of the sandwiches cutting.

PRODUCT SPECIFICATIONS

Model	Wanlisonic 160K（with 2 baldes）
Dimensions	L1700*W600*H1400mm
Weight	Net Wt. 200KGS, Gross Wt.330KGS
Voltage	220V
Rated power	4000W
Frequency	50Hz-60Hz
Cutting speed	80 cuts/minute
Number of blades	1
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	sandwiches cutting
Maximum cutting size	12cm*12cm, height below 10cm
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

More details feel free to contact us!Email:sales2@wanlisonic.com Tel/WhatsApp/WeChat: 0086-1575-9600-601

FEATURES AT A GLANCE

· HIGH SPEED CUTTING               · STAINLESS STEEL FRAME               · TITANIUM ALLOY ULTRASONIC KNIFE               · SECURITY DOOR

· ONLINE MAINTENANCE SUPPORT                    · VERSATILITY ON FOOD                   · BELT UNDERCARRIAGE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the

ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Cutting Schematic Model

Food slice modeApplied to variety of food:Toast/BreadCheese/ButterCandy/NougatCookies etc.

Product Overview

The device with sandwiches slice mode. Working speed and angle parameters are adjustable.

Applications1. Bread slice
2. Sandwiches cut
3. Cheese triangle slice
4. Dough cut
5. Cake slice
6.Other foods

PRODUCT CONFIGURATION

                      Brand Ultrasonic Transducer                                     Brand Ultrasonic Generator                          Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
